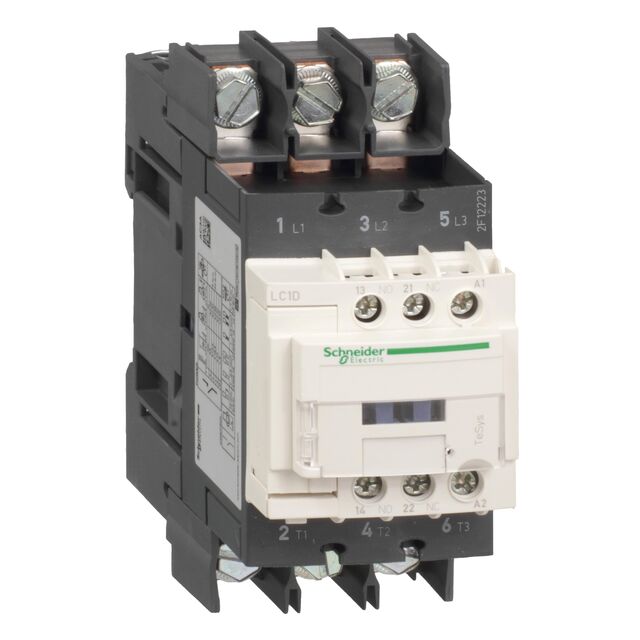

LC1D40A6K7
ActiveSCHNEIDER ELECTRIC
3P EVLK CONT 40A 18,5KW AC3 100V
LC1D40A6K7
ActiveSCHNEIDER ELECTRIC
3P EVLK CONT 40A 18,5KW AC3 100V
Description
General part information
LC1D40A6K7
3P EVLK CONT 40A 18,5KW AC3 100V
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D40A6K7 |
|---|---|
| Coil Voltage | 100 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 40 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 85 VDC |
| Must Release Voltage | 30 V |
| Operate Time | 26 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Box Lug |
