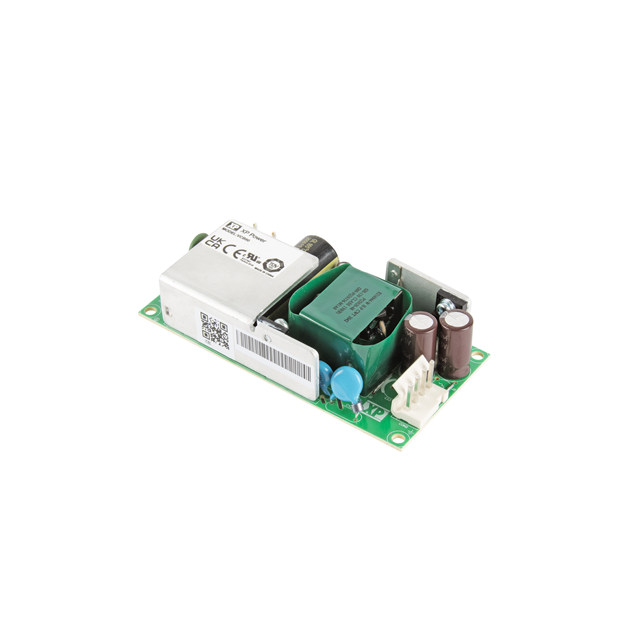

Photo VCB60_cutout_0921_disty

VCB60US15

Active
XP Power

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 60 W, 90V AC TO 305V AC, FIXED

Find alt
Photo VCB60_cutout_0921_disty

VCB60US15

Active
XP Power

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 60 W, 90V AC TO 305V AC, FIXED

Find alt

Description

General part information

VCB60US15

VCB60 is a series of open frame AC-DC single output power supplies designed for low cost ITE, industrial and domestic applications. With approvals to world-wide safety standards including ITE and household, compliance with class B for conducted and radiated emissions, this series benefit system designers with easy integration into a wide range of applications. THIS Low profile AC-DC power supplies that are intended for use in a wide variety of cost-sensitive applications including information technology equipment, industrial electronics, domestic, Internet of Things (IoT) and robotics. The VCB60 series carries multiple approvals including EN55024, EN55035, EN61000-4 for EMC immunity and EN55032, EN55014, and EN61000-3 for EMC emissions. The broad range of approvals ensures that units can be safely used in a wide range of ITE, industrial and domestic applications while ensuring they meet noise requirements without external filtering.

Technical Specifications

Parameters and characteristics for this part

SpecificationVCB60US15
ApplicationsITE (Commercial), Household Appliances
Approval AgencyCE, CB, UL, UKCA
Current - Output 14 A
Efficiency85 %
FeaturesAdjustable Output
Minimum Load RequiredNo
Mounting TypeChassis Mount
Number of Outputs1
Operating Temperature (Max)60 °C
Operating Temperature (Min)-10 °C
Power (Watts)60 W
Size / Dimension Height1.01 in
Size / Dimension Length4 in
Size / Dimension Width2 in
Standard Number60950-1, 62368-1, 60335-1
TypeOpen Frame
Voltage - Input (AC) Maximum305 VAC
Voltage - Input (AC) Minimum90 V
Voltage - Isolation3 kV
Voltage - Output 115 V
