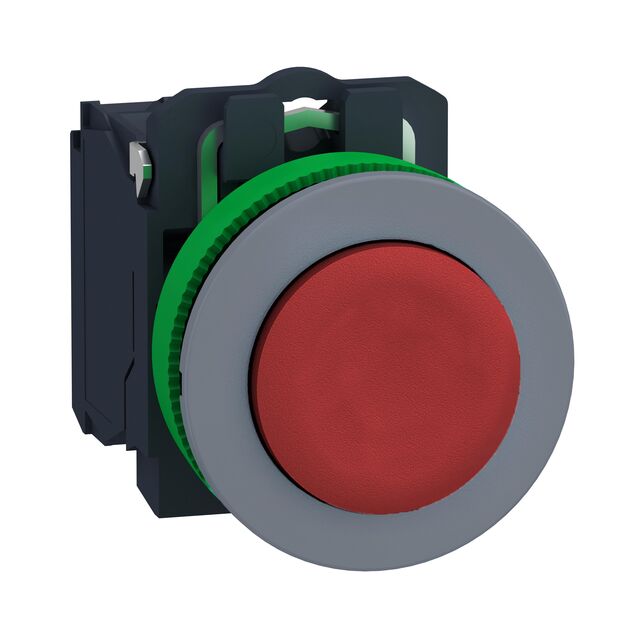

Specification	XB5FL42C0

Actuator Type	Round, Flush, Button
Circuit	SPST-NC
Color - Actuator/Cap	Red
Current Rating	550 mA, 6 A
Electrical Life (Cycles)	1000000 Cycles
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Mechanical Life (Cycles)	10000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Panel Cutout Diameter	30.5 mm
Panel Cutout Shape	Circular
Switch Function	On-Off
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	125 V
