HSHM-S110A1-5AP1-TR40B
Active3M

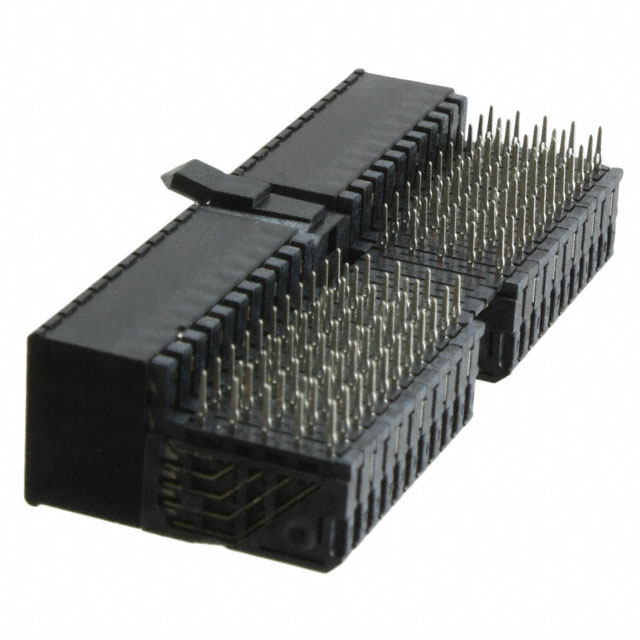

CONN RECEPT 110POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSHM-S110A1-5AP1-TR40B
Active3M
CONN RECEPT 110POS 2MM PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HSHM-S110A1-5AP1-TR40B | HSHM-S110 Series |
|---|---|---|
| Connector Style | A 22 | A 22, B 22 |
| Connector Type | Receptacle, Female Sockets | Blade Sockets, Receptacle, Female Sockets, Receptacle, Female Sockets |
| Connector Usage | Backplane | Backplane |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 50 µin | 30 - 50 Áin |
| Contact Finish Thickness | 1.27 µm | 0.76 - 1.27 Ám |
| Contact Finish Thickness | - | 30 µin |
| Contact Finish Thickness | - | 0.76 µm |
| Contact Finish Thickness | - | 1.27 µm |
| Contact Finish Thickness | - | 50 µin |
| Current Rating (Amps) | 1 A | 1 A |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 110 positions | 110 - 114 |
| Number of Positions Loaded | All | All |
| Number of Rows | 5 | 5 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.079 in | 0.079 in |
| Pitch [x] | 2 mm | 2 mm |
| Termination | Press-Fit | Press-Fit |
HSHM-S110 Series
CONN RECEPT 114POS 2MM PRESS-FIT
| Part | Connector Usage | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Number of Positions | Mounting Type | Current Rating (Amps) | Number of Rows | Pitch [x] | Pitch [x] | Connector Type | Termination | Number of Positions Loaded | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness [custom] | Contact Finish Thickness [custom] | Contact Finish Thickness [custom] | Contact Finish Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Backplane | Gold | -55 °C | 125 °C | A 22 | 114 | Through Hole, Right Angle | 1 A | 5 | 0.079 in | 2 mm | Blade Sockets, Female Sockets, Receptacle | Press-Fit | All | 0.76 Ám | 30 Áin | |||||
Backplane | Gold | -55 °C | 125 °C | A 22 | 110 positions | Through Hole, Right Angle | 1 A | 5 | 0.079 in | 2 mm | Receptacle, Female Sockets | Press-Fit | All | 1.27 µm | 50 µin | |||||
Backplane | Gold | -55 °C | 125 °C | A 22 | 110 positions | Through Hole, Right Angle | 1 A | 5 | 0.079 in | 2 mm | Receptacle, Female Sockets | Press-Fit | All | 30 µin | 0.76 µm | 1.27 µm | 50 µin | |||
Backplane | Gold | -55 °C | 125 °C | A 22 | 110 positions | Through Hole, Right Angle | 1 A | 5 | 0.079 in | 2 mm | Receptacle, Female Sockets | Press-Fit | All | 0.76 Ám | 30 Áin | |||||
Backplane | Gold | -55 °C | 125 °C | B 22 | 110 positions | Through Hole, Right Angle | 1 A | 5 | 0.079 in | 2 mm | Receptacle, Female Sockets | Press-Fit | All | 0.76 Ám | 30 Áin | |||||
Backplane | Gold | -55 °C | 125 °C | B 22 | 110 positions | Through Hole, Right Angle | 1 A | 5 | 0.079 in | 2 mm | Receptacle, Female Sockets | Press-Fit | All | 0.76 Ám | 30 Áin | |||||
Backplane | Gold | -55 °C | 125 °C | A 22 | 110 positions | Through Hole, Right Angle | 1 A | 5 | 0.079 in | 2 mm | Receptacle, Female Sockets | Press-Fit | All | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HSHM-S110 Series
110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
