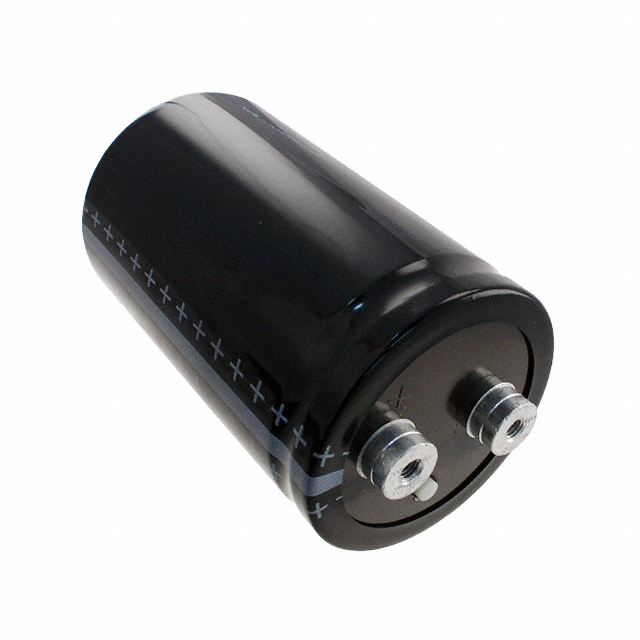

Specification	B41456B9229M003

Applications	General Purpose
Capacitance	22000 µF
ESR (Equivalent Series Resistance)	10 mOhm
Height - Seated (Max)	4.201 in
Impedance	10 mOhm
Lead Spacing	1.122 in
Lifetime	12000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	17 A
Size / Dimension Diameter	2.532 in
Tolerance	20 %
Voltage - Rated	100 VAC/DC
