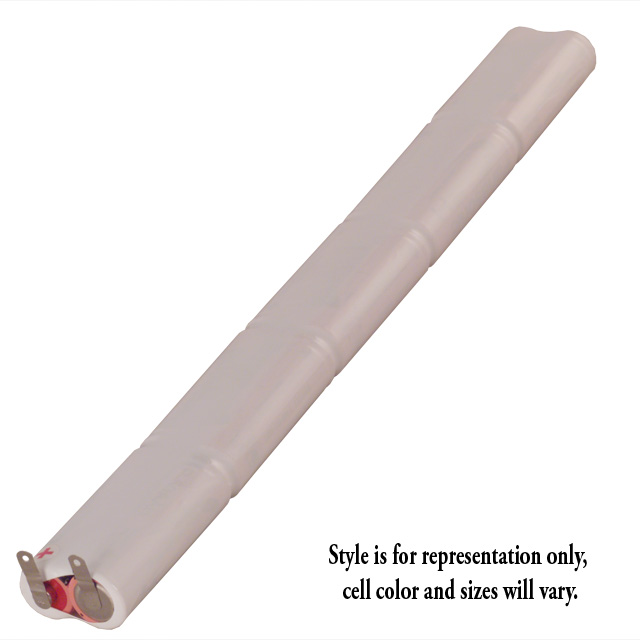

AM3XL5X2
ObsoletePanasonic Energy
BATTERY PACK ALKALINE 15V AA
AM3XL5X2
ObsoletePanasonic Energy
BATTERY PACK ALKALINE 15V AA
Description
General part information
AM3XL5X2
AA 15 V Alkaline Manganese Dioxide Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | AM3XL5X2 |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Alkaline Manganese Dioxide |
| Number of Cells | 10 |
| Rechargeability | No |
| Size / Dimension Height | 9.94 in |
| Size / Dimension Length | 1.14 in |
| Size / Dimension Width | 0.57 in |
| Structure | Front to Back |
| Structure Cells | 5 |
| Structure Rows | 2 |
| Termination Style | Solder Tab |
| Voltage - Rated | 15 V |
| Weight | 226.8 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
