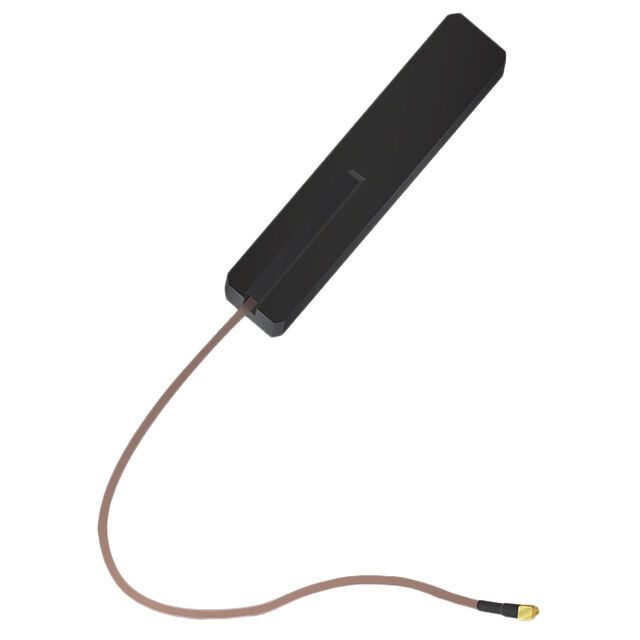

Specification	1003657

Antenna Type	Module
Applications	LoRa, LPWAN, Sigfox, LTE
Features	Cable - 218mm
Frequency (Center/Band)	725MHz, 2.1325GHz, 766.5MHz, 1.7325GHz
Frequency (Center/Band) - 1	725 MHz
Frequency (Center/Band) - 2	766.5 MHz
Frequency (Center/Band) - 3	1.7325 GHz
Frequency (Center/Band) - 4	2.1325 GHz
Frequency Group	Wide Band
Frequency Range (Band 1) Maximum	746 MHz
Frequency Range (Band 1) Minimum	704 MHz
Frequency Range (Band 2) Maximum	787 MHz
Frequency Range (Band 2) Minimum	746 MHz
Frequency Range (Band 3) Maximum	1.755 GHz
Frequency Range (Band 3) Minimum	1.71 GHz
Frequency Range (Band 4) Maximum	2.155 GHz
Frequency Range (Band 4) Minimum	2.11 GHz
Gain	1.6 dBi, 3.4 dBi, 1 dBi, 3.2 dBi
Height (Max)	0.165 in
Mounting Type	Surface Mount
Number of Bands	4
RF Family/Standard	Cellular
Termination	MMCX
VSWR	2.5, 2.1
VSWR Maximum	2.5
VSWR Minimum	2.1
