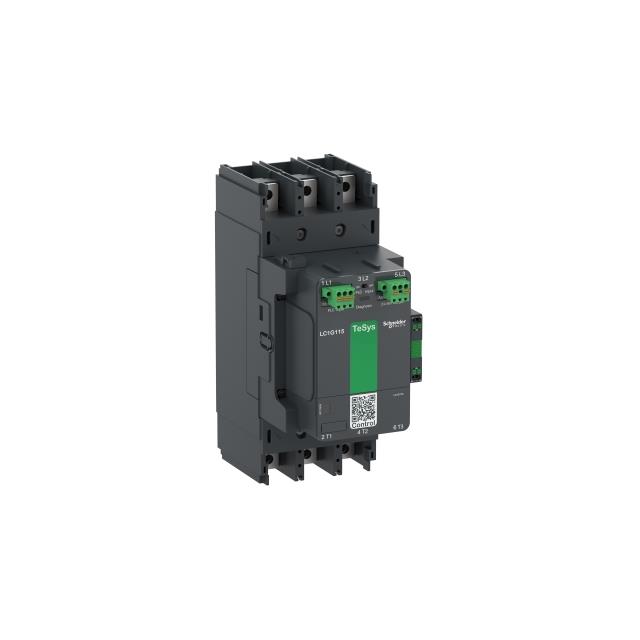

LC1G150EHEA
ActiveSCHNEIDER ELECTRIC
CONTACTOR, IP2X, 150 A, PANEL MOUNT, 1 KV, 3PST-NO, 3 POLE, 75 KW
LC1G150EHEA
ActiveSCHNEIDER ELECTRIC
CONTACTOR, IP2X, 150 A, PANEL MOUNT, 1 KV, 3PST-NO, 3 POLE, 75 KW
Description
General part information
LC1G150EHEA
CONTACTOR, IP2X, 150 A, PANEL MOUNT, 1 KV, 3PST-NO, 3 POLE, 75 KW
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1G150EHEA |
|---|---|
| Coil Voltage (Max) | 130 VAC/DC |
| Coil Voltage (Min) | 48 VDC |
| Coil Voltage (Type) | AC, DC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 150 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount |
| Operate Time | 70 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 50 ms |
| Switching Voltage AC (Max) | 1000 VAC |
| Switching Voltage DC (Max) | 460 VDC |
| Termination Style | Spring Terminal |
