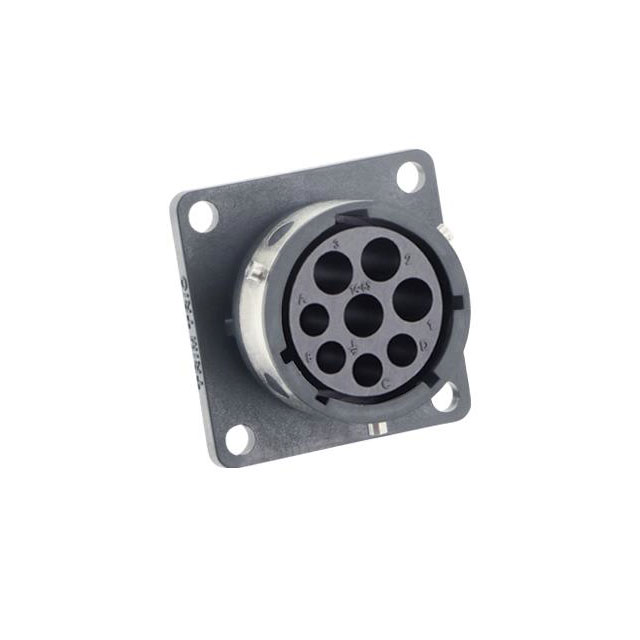

Specification	UTGX0148S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	12, 16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	UV Resistant
Housing Color	Black
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	8
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Position Types	Power, PE
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	8 mm
Shielding	Unshielded
Type	For Female Sockets

UTGX0 Series

...

Part	Primary Material	Voltage Rating	Applications	Fastening Type	Contact Material	Insert Material	Features	Color	Mounting Type	Number of Positions	Current Rating	Ingress Protection Description	Ingress Protection IP Rating	Termination	Material Flammability Rating	Shell Size - Insert Width	Shell Size - Insert Length	Connector Type	Orientation	Mounting Feature	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Shell Material	Type	Contact Type	Housing Color	Includes Total Count	Includes	Note	Shell Size - Insert	Contact Size	Contact Shape	Position Types	Current Rating Options	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)
Amphenol Aerospace Operations UTGX014E5P	Plastic	600 V	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Brass	Polychloroprene	UV Resistant	Black	Panel Mount	5	12 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	UL94 V-0	5 mm	14 mm	Male Pins Receptacle	N (Normal)	Flange	Unshielded	-40 °C	105 °C	Nylon Polyamide (PA)
Amphenol Aerospace Operations UTGX010D6P	Plastic	250 V	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Brass	Polychloroprene	UV Resistant	Black	Panel Mount Through Hole	6	6 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	UL94 V-0			Male Pins Receptacle	N (Normal)	Flange	Unshielded	-40 °C	105 °C	Nylon Polyamide (PA)
Amphenol Aerospace Operations UTGX014D19P	Plastic	250 V	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Brass	Polychloroprene	UV Resistant	Black	Panel Mount Through Hole	19	4 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	UL94 V-0			Male Pins Receptacle	N (Normal)	Flange	Unshielded	-40 °C	105 °C	Nylon Polyamide (PA)
Amphenol Aerospace Operations UTGX014E5S	Plastic	600 V	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Brass	Polychloroprene	UV Resistant	Black	Panel Mount	5	12 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	UL94 V-0	5 mm	14 mm	Female Sockets Receptacle	N (Normal)	Flange	Unshielded	-40 °C	105 °C	Nylon Polyamide (PA)
Amphenol Aerospace Operations UTGX012D2S	Plastic	600 V	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Brass	Polychloroprene	UV Resistant	Black	Panel Mount Through Hole	2	13 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	UL94 V-0	2 mm	12 mm	Female Sockets Receptacle	N (Normal)	Flange	Unshielded	-40 °C	105 °C	Nylon Polyamide (PA)
Amphenol Aerospace Operations UTGX012D2P	Plastic	600 V	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Brass	Polychloroprene	UV Resistant	Black	Panel Mount Through Hole	2	13 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	UL94 V-0	2 mm	12 mm	Male Pins Receptacle	N (Normal)	Flange	Unshielded	-40 °C	105 °C	Nylon Polyamide (PA)
Amphenol Aerospace Operations UTGX0JC102W2P				Bayonet Lock		Nylon PA Polyamide	Backshell UV Resistant		Free Hanging (In-Line) Panel Mount	4		Dust Tight Water Resistant Waterproof	IP68 IP69K		UL94 V-0			Receptacle Housing	N (Normal)	Flange	Unshielded	-40 °C	105 °C	Nylon Polyamide (PA)	For Male Pins	Crimp	Black	2 pcs	Backshell Connector	Contacts Not Included	10-2W2	12 20	Circular
Amphenol Aerospace Operations UTGX012E4P	Plastic	600 V	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Brass	Polychloroprene	UV Resistant	Black	Panel Mount	4	13 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	UL94 V-0	4 mm	12 mm	Male Pins Receptacle	N (Normal)	Flange	Unshielded	-40 °C	105 °C	Nylon Polyamide (PA)										PE
Amphenol Aerospace Operations UTGX012D3S	Plastic	600 V	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Brass	Polychloroprene	UV Resistant	Black	Panel Mount Through Hole	3	13 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	UL94 V-0	3 mm	12 mm	Female Sockets Receptacle	N (Normal)	Flange	Unshielded	-40 °C	105 °C	Nylon Polyamide (PA)
Amphenol Aerospace Operations UTGX014E15S	Plastic	250 V 600 V	Automation Industrial Instrumentation Testing Equipment	Bayonet Lock	Brass	Polychloroprene	UV Resistant	Black	Panel Mount	15		Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	UL94 V-0			Female Sockets Receptacle	N (Normal)	Flange	Unshielded	-40 °C	105 °C	Nylon Polyamide (PA)										Power	12A 5A	14 S	15
