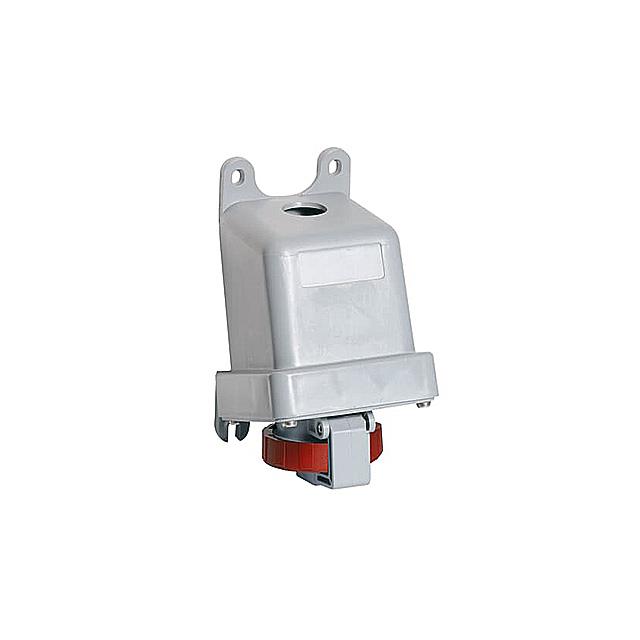

2CMA167157R1000
ActiveMcGill Microwave Systems
AC RCPT PIN & SLEEVE
2CMA167157R1000
ActiveMcGill Microwave Systems
AC RCPT PIN & SLEEVE
Description
General part information
2CMA167157R1000
Power Connector Receptacle, Female Sockets Pin and Sleeve (3P4W) Wall Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2CMA167157R1000 |
|---|---|
| Approval Agency | IEC |
| Connector Style | Pin and Sleeve (3P4W) |
| Connector Type | Receptacle, Female Sockets |
| Current Rating | 16 A |
| Features | Cover |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67, IP69K |
| Mounting Type | Wall Mount |
| Number of Positions | 4 |
| Termination | Screw |
| Voltage Rating (Option 1) | 380 V |
| Voltage Rating (Option 2) | 415 V |
