287T420S253A11
ActiveCTS Electrocomponents

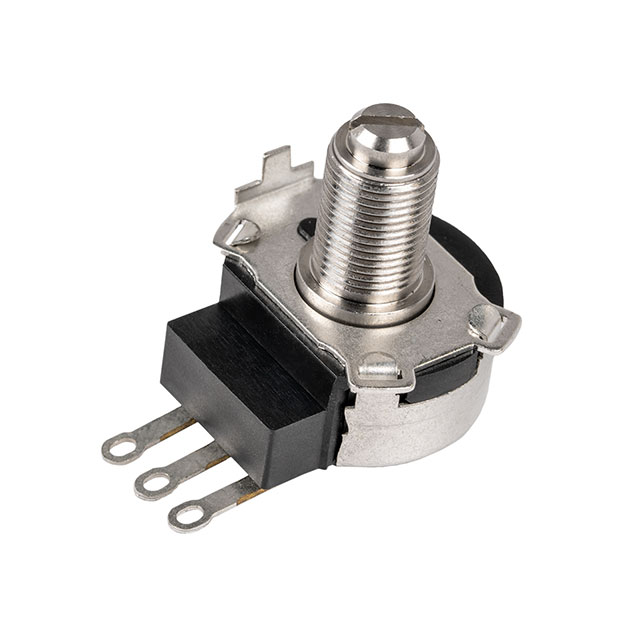

POT 25K OHM 2W CERMET LINEAR
287T420S253A11
ActiveCTS Electrocomponents
POT 25K OHM 2W CERMET LINEAR
Description
General part information
287T420S253A11
25k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 2W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | 287T420S253A11 |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Length | 0.625 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 2 w |
| Resistance | 25 kOhm |
| Resistive Material | Cermet |
| Rotation | 312 ° |
| Size - Body Diameter | 1.051 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
