Description
General part information

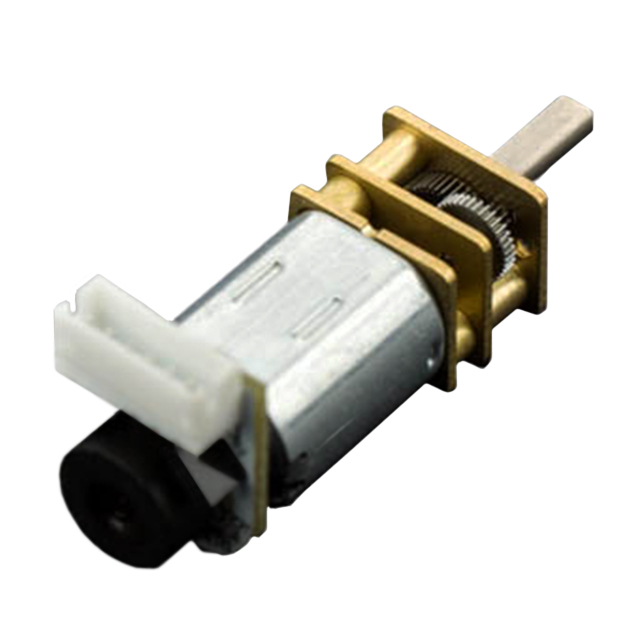

FIT0484
DC Motor Gearmotor 105 RPM Incremental 6VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | FIT0484 |
|---|---|
| Diameter - Shaft | 0.118 in |
| Encoder Type | Incremental |
| Function | Gearmotor |
| Gear Reduction Ratio | 150 |
| Length - Shaft and Bearing | 0.394 in |
| Mounting Hole Spacing | 0.472 in |
| RPM | 105 RPM |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.472 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 98.07 mNm |
| Torque - Rated (oz-in) | 13.89 oz-in |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
| Weight | 0.04 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
