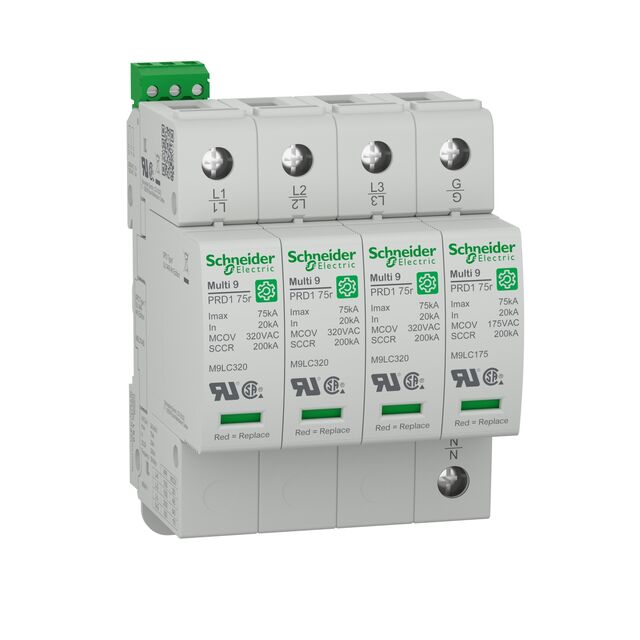

M9L37480
ActiveSCHNEIDER ELECTRIC
MULTI9PRD1 75R4P T1 277/480V20KA320V SPD
M9L37480
ActiveSCHNEIDER ELECTRIC
MULTI9PRD1 75R4P T1 277/480V20KA320V SPD
Description
General part information
M9L37480
MULTI9PRD1 75R4P T1 277/480V20KA320V SPD
Technical Specifications
Parameters and characteristics for this part
| Specification | M9L37480 |
|---|---|
| Current - Discharge (Max) | 75 kA |
| Current - Discharge (Nom) | 20 kA |
| Current - Short Circuit Rating (SCCR) | 200 kA |
| Form | Module, Base |
| Mounting Type | DIN Rail |
| Number of Poles | 4 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Type | Type 1 |
| Voltage - Continuous Operating (Max) (MCOV) | 640 V |
| Voltage - Protection Level (VP) (2416) | 2 kV |
