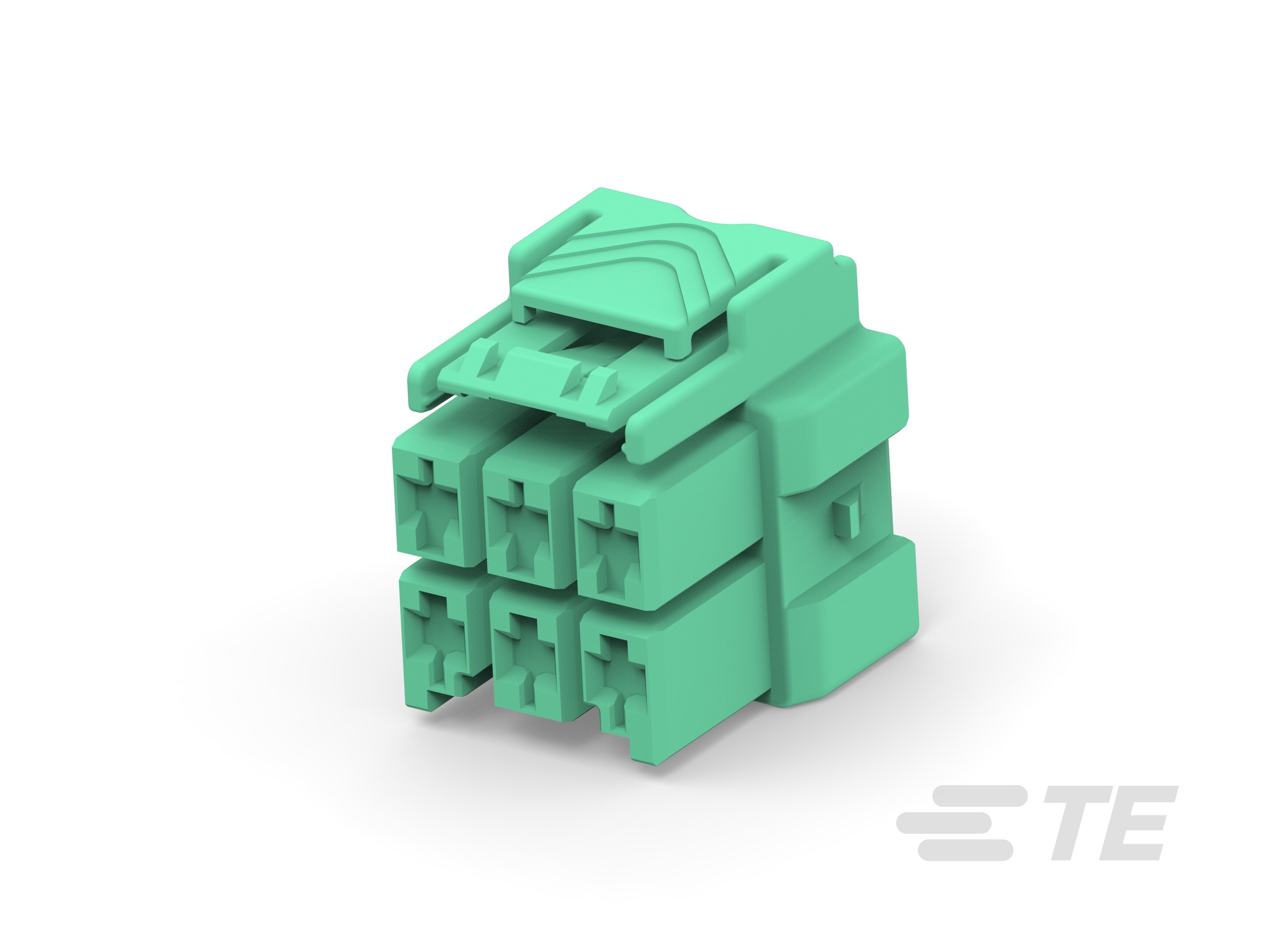

Specification	7-2232266-3

Color	Green
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Blade Socket
Fastening Type	Latch Lock
Features	Glow Wire Compliant
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.236 in
Row Spacing	0.319 in

2232266 Series

RF Connectors / Coaxial Connectors 2x5 cap housing free hanging Key D ora

Part	Note	Connector Type	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Row Spacing	Contact Termination	Mounting Type	Insulation Material	Pitch	Color	Number of Rows	Contact Type	Number of Positions	Pin or Socket	Contact Finish	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Wire Gauge	For Use With/Related Products	Accessory Type	Features
TE Connectivity AMP Connectors 5-1971776-5	Contacts Not Included	Plug	Latch Holder	150 °C	-55 °C	0.319 in	Crimp	Free Hanging (In-Line)	Nylon Polyamide (PA)	0.236 in	Gray	2	Female Blade Socket	10
TE Connectivity AMP Connectors 1971784-2							Crimp								Tab	Tin	16 AWG	22 AWG
TE Connectivity AMP Connectors 1971788-1							Crimp								Tab	Tin			18 AWG
TE Connectivity AMP Connectors 1971778-5														10						Power Triple Lock Series	Locking Plate
TE Connectivity AMP Connectors 1971778-6														12						Power Triple Lock Series	Locking Plate
TE Connectivity AMP Connectors 5-2232356-7		Receptacle	Latch Lock	105 °C	-55 °C	0.319 in	Crimp	Panel Mount Snap-In	Glass Filled Nylon 6 Polyamide (PA6)	0.236 in	Gray	3	Tab	15
TE Connectivity AMP Connectors 5-2232353-3	Contacts Not Included	Receptacle	Latch Holder	105 °C	-55 °C		Crimp	Panel Mount Snap-In	Glass Filled Nylon Polyamide (PA)	0.236 in	Natural	1	Tab	3
TE Connectivity AMP Connectors 6-2232264-5		Receptacle	Latch Lock	105 °C	-55 °C	0.319 in	Crimp	Panel Mount Snap-In	Glass Filled Nylon Polyamide (PA)	0.236 in	Brown	2	Tab	10								Glow Wire Compliant
TE Connectivity AMP Connectors 6-2232356-3		Plug	Latch Holder	105 °C	-55 °C	0.319 in	Crimp	Through Hole	Glass Filled Nylon Polyamide (PA)	0.236 in	Brown	3	Male Pin	9								Cap (Cover)
TE Connectivity AMP Connectors 1971782-1							Crimp								Tab	Tin			14 AWG
