Description

General part information

322316

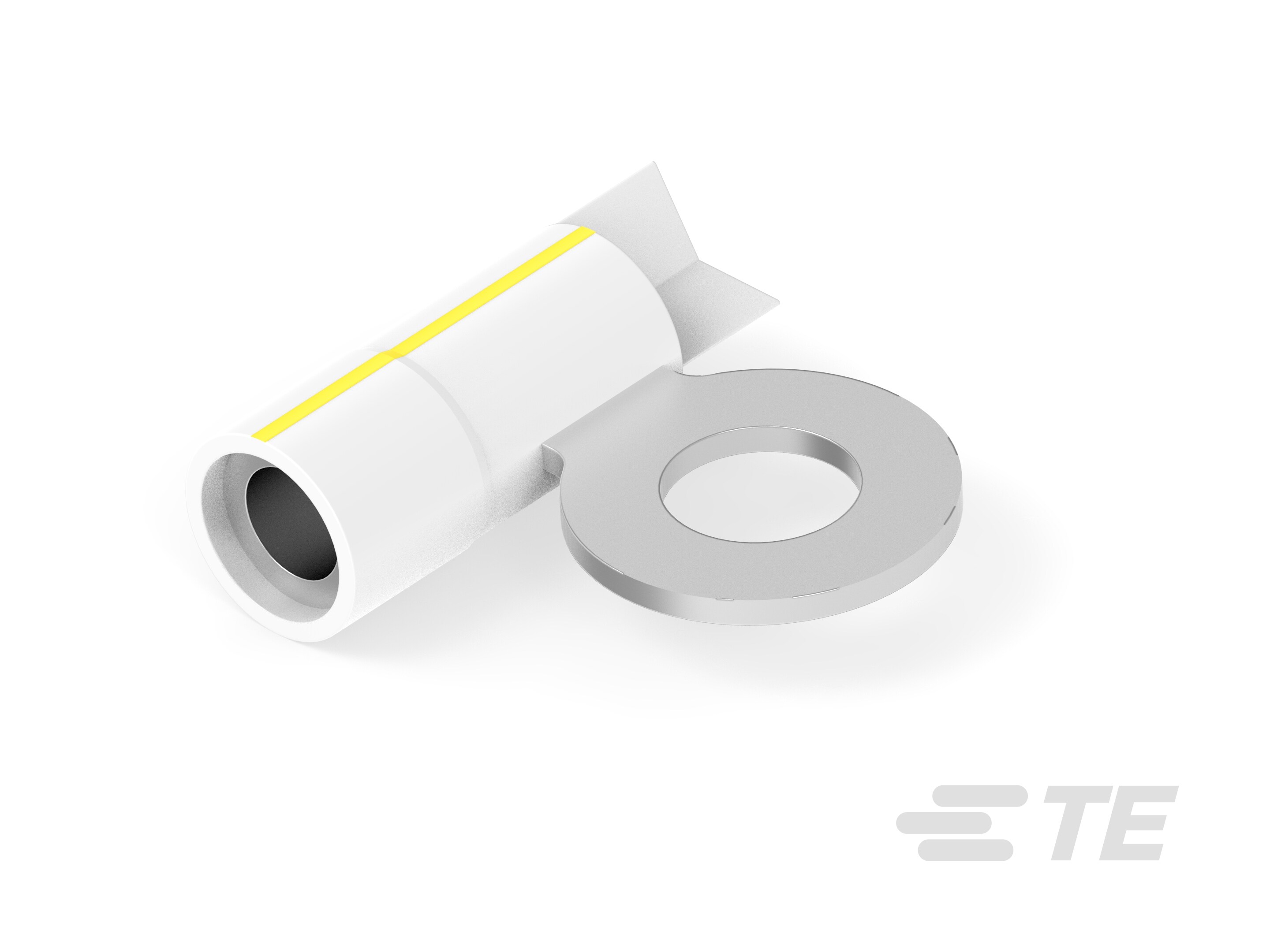

Closed Ring Tongue Terminal, 12 – 10 AWG, #14 Stud, 6.14 mm [.242 in] Stud Diameter, Closed Barrel, Flag, Tin Plating, PLASTI-GRIP

Technical Specifications

Parameters and characteristics for this part

Specification322316
ColorNatural, Yellow Stripe
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Length - Overall0.812 in
Mounting TypeRight Angle, Free Hanging (In-Line)
Stud/Tab Size14 Stud
Terminal TypeCircular
TerminationFlag, Crimb
Thickness0.04 in
Width - Outer Edges0.5 in
Wire Gauge (AWG) (Max)12 AWG
Wire Gauge (AWG) (Min)10 AWG
