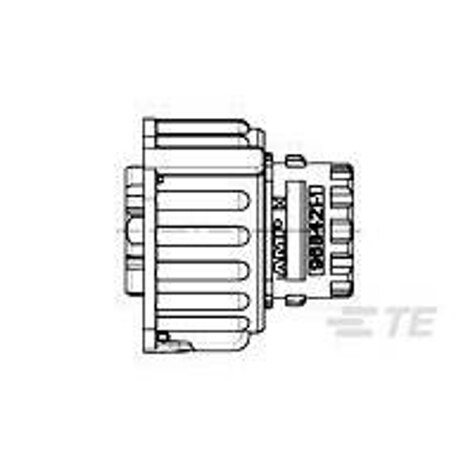

1-967650-1
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS 1,5MM BU-STE,BL 7P
1-967650-1
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS 1,5MM BU-STE,BL 7P
Description
General part information
1-967650-1
7 Position Housing, Housing for Female Terminals, Wire-to-Wire, Sealable, Blue, Wire & Cable, Power, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967650-1 |
|---|---|
| Connector Type | Plug Housing |
| Contact Size | 1.5 mm |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Black |
| Ingress Protection Description | High Temp Water Jets, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Orientation | A |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shielding | Unshielded |
| Type | For Female Sockets |
