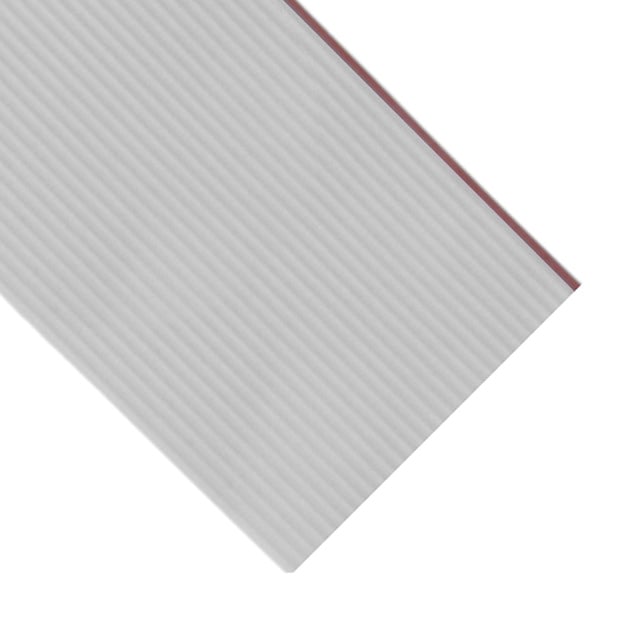

Specification	3625/30 30M

Cable Type	Flat Cable
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	36 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	3.28 ft, 32.8 ft, 16.4 ft, 98.4 ft
Length	Enter Number of Meters in Order Quantity
Number of Conductors	30
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Pitch	0.039 in
Ratings	2651, Style, UL
Ribbon Thickness	0.035 in
Ribbon Width	1.181 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3625 Series

Part	Jacket Color	Pitch	Features	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Voltage	Conductor Strand Count	Conductor Strand Gauge	Ribbon Thickness	Ribbon Width	Jacket (Insulation) Material	Length	Number of Conductors	Wire Gauge	Cable Type	Ratings	Length	Insulation Resistance	First Conductor Mark	Conductor Material	Spool Size
3M Electronic Specialty 3625/40 100M	Gray	0.039 in	Zippable	Unshielded	-20 °C	105 °C	300 V	7 Strands	36 AWG	0.035 in	1.575 in	Poly-Vinyl Chloride (PVC)	Enter Number of Meters in Order Quantity	40	28 AWG	Flat Cable	2651 Style UL	328.1 ft	10 GOhm	Red	Copper Tinned	328.1 ft
3M Electronic Specialty 3625/26SF	Gray	0.039 in	Splice Free	Unshielded	-20 °C	105 °C	300 V	7 Strands	36 AWG	0.035 in	1.024 in	Poly-Vinyl Chloride (PVC)		26	28 AWG	Flat Cable		98.4 ft	10 GOhm	Red	Copper Tinned
3M Electronic Specialty 3625/20SF 30M	Gray	0.039 in	Zippable	Unshielded	-20 °C	105 °C	300 V	7 Strands	36 AWG	0.035 in	0.787 in	Poly-Vinyl Chloride (PVC)		20	28 AWG	Flat Cable	2651 Style UL	3.28 ft 32.8 ft 98.4 ft	10 GOhm	Red	Copper Tinned
3M Electronic Specialty 3625/16 100MSF	Gray	0.039 in	Splice Free Zippable	Unshielded	-20 °C	105 °C	300 V	7 Strands	36 AWG	0.035 in	0.63 in	Poly-Vinyl Chloride (PVC)		16	28 AWG	Flat Cable	2651 Style UL	16.4 ft 32.8 ft 82 ft 164 ft 328.1 ft	10 GOhm	Red	Copper Tinned
3M Electronic Specialty 3625/40 100MSF	Gray	0.039 in	Splice Free Zippable	Unshielded	-20 °C	105 °C	300 V	7 Strands	36 AWG	0.035 in	1.575 in	Poly-Vinyl Chloride (PVC)		40	28 AWG	Flat Cable	2651 Style UL	16.4 ft 32.8 ft 82 ft 164 ft 328.1 ft	10 GOhm	Red	Copper Tinned
3M Electronic Specialty 3625/50SF 30M	Gray	0.039 in	Zippable	Unshielded	-20 °C	105 °C	300 V	7 Strands	36 AWG	0.035 in	1.969 in	Poly-Vinyl Chloride (PVC)		50	28 AWG	Flat Cable	2651 Style UL	3.28 ft 16.4 ft 32.8 ft 98.4 ft	10 GOhm	Red	Copper Tinned
3M Electronic Specialty 3625/22 100MSF	Gray	0.039 in	Splice Free Zippable	Unshielded	-20 °C	105 °C	300 V	7 Strands	36 AWG	0.035 in	0.866 in	Poly-Vinyl Chloride (PVC)	Enter Number of Meters in Order Quantity	22	28 AWG	Flat Cable	2651 Style UL	16.4 ft 32.8 ft 82 ft 164 ft 328.1 ft	10 GOhm	Red	Copper Tinned	328.1 ft
3M Electronic Specialty 3625/24 100MSF	Gray	0.039 in	Splice Free Zippable	Unshielded	-20 °C	105 °C	300 V	7 Strands	36 AWG	0.035 in	0.945 in	Poly-Vinyl Chloride (PVC)		24	28 AWG	Flat Cable	2651 Style UL	16.4 ft 32.8 ft 82 ft 164 ft 328.1 ft	10 GOhm	Red	Copper Tinned
3M Electronic Specialty 3625/44 100M	Gray	0.039 in	Zippable	Unshielded	-20 °C	105 °C	300 V	7 Strands	36 AWG	0.035 in	1.732 in	Poly-Vinyl Chloride (PVC)		44	28 AWG	Flat Cable	2651 Style UL	16.4 ft 32.8 ft 82 ft 164 ft 328.1 ft	10 GOhm	Red	Copper Tinned
3M Electronic Specialty 3625/26 30M	Gray	0.039 in	Zippable	Unshielded	-20 °C	105 °C	300 V	7 Strands	36 AWG	0.035 in	1.024 in	Poly-Vinyl Chloride (PVC)	Enter Number of Meters in Order Quantity	26	28 AWG	Flat Cable	2651 Style UL	3.28 ft 16.4 ft 32.8 ft 98.4 ft	10 GOhm	Red	Copper Tinned
