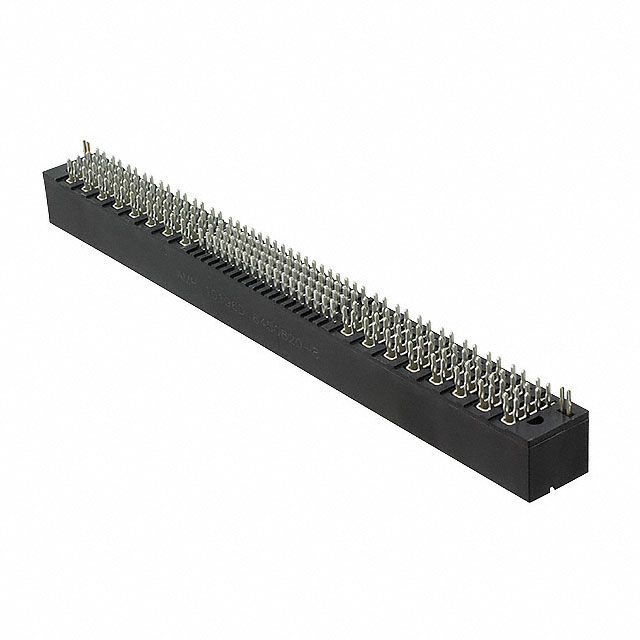

Specification	6450820-9

Color	Black
Connector Style	Multi-Beam
Connector Type	Blades, Male Pins, Header
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Mating Guide, Board Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	88
Number of Positions Loaded	All
Number of Rows	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Pitch	0.1 in
Power Contacts (Typical)	16
Signal Contacts (Typical)	72
Termination	Press-Fit

MULTI-BEAM XLE Series

...

Part	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Pitch	Number of Rows	Number of Positions	Number of Positions Loaded	Number of Columns	Connector Type	Power Contacts (Typical)	Contact Finish	Mounting Type	Connector Style	Features
TE Connectivity AMP Connectors 6450833-4	UL94 V-0	125 °C	-40 °C	Solder	5.08 mm	1	20	All	20	Header Male Blades	20	Gold	Board Edge Right Angle Through Hole	Multi-Beam	Board Guide
