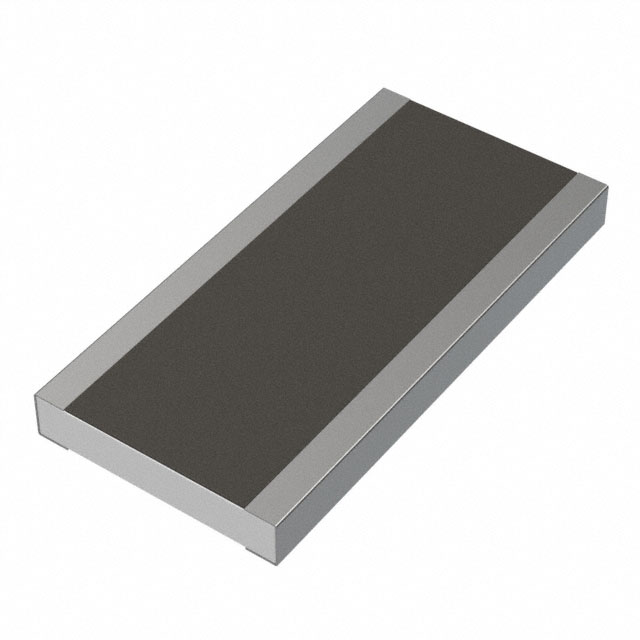

WK73S3ATTER33J
ActiveKOA Speer Electronics, Inc.
FIXED RESISTOR, METAL GLAZE/THICK FILM, 1.5W, 0.33OHM, 200V, 5% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 1225, CHIP, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WK73S3ATTER33J
ActiveKOA Speer Electronics, Inc.
FIXED RESISTOR, METAL GLAZE/THICK FILM, 1.5W, 0.33OHM, 200V, 5% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 1225, CHIP, ROHS COMPLIANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WK73S3ATTER33J |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Moisture Resistant |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Wide 2512 (6432 Metric) |
| Package / Case | 1225 |
| Power (Watts) | 1.5 W |
| Ratings | AEC-Q200 |
| Resistance | 330 mOhms |
| Size / Dimension [x] | 3.1 mm |
| Size / Dimension [x] | 0.122 " |
| Size / Dimension [y] | 0.248 in |
| Size / Dimension [y] | 6.3 mm |
| Supplier Device Package | 1225 |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.19 | |
Description
General part information
WK73S3ATTER33J
330 mOhms ±5% 1.5W Chip Resistor Wide 2512 (6432 Metric), 1225 Automotive AEC-Q200, Moisture Resistant Thick Film
