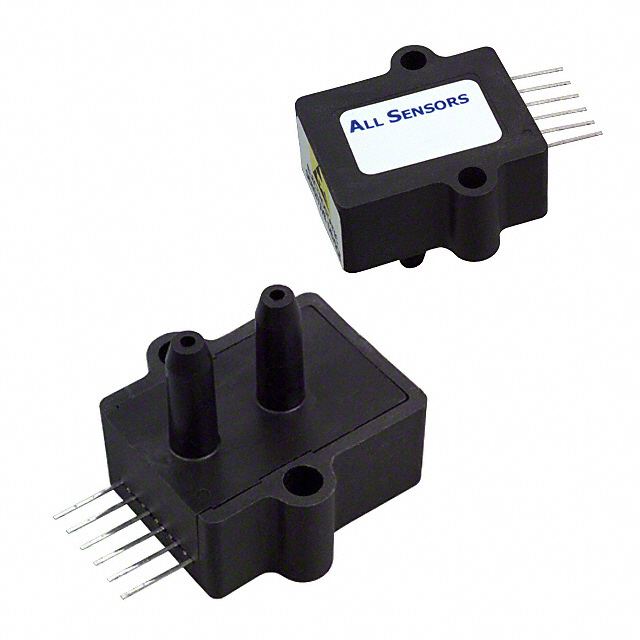

15 PSI-A-HGRADE-MV-ABT

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA 0.19" .09V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA 0.19" .09V

Technical Specifications

Parameters and characteristics for this part

SENSOR 15PSIA 0.19" .09V

Part	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Port Size	Port Size	Accuracy	Features	Output [Max]	Output [Min]	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Operating Pressure [custom]	Operating Pressure [custom]	Applications	Termination Style	Voltage - Supply
Amphenol All Sensors Corporation 15 PSI-A-HGRADE-MV-ABT	6-SIP Module	Through Hole	-25 °C	85 °C	4.8 mm, 4.826 mm	Dual, Male, Tube	0.5 %	Temperature Compensated	90 mV	0 mV	Barbless	60 PSI	413.69 kPa	Wheatstone Bridge	15 PSI	103.42 kPa	Board Mount	PC Pin	16 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 500.00

General part information

Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.19" (4.8mm) Tube, Dual 0 mV ~ 90 mV (12V) 6-SIP Module

Technical documentation and resources

No documents available
