1190300
ActivePhoenix Contact
TERMINAL BLOCK, WTB, 5POS, 24-12AWG, TH ROHS COMPLIANT: YES
1190300
ActivePhoenix Contact
TERMINAL BLOCK, WTB, 5POS, 24-12AWG, TH ROHS COMPLIANT: YES
Description
General part information
1190300

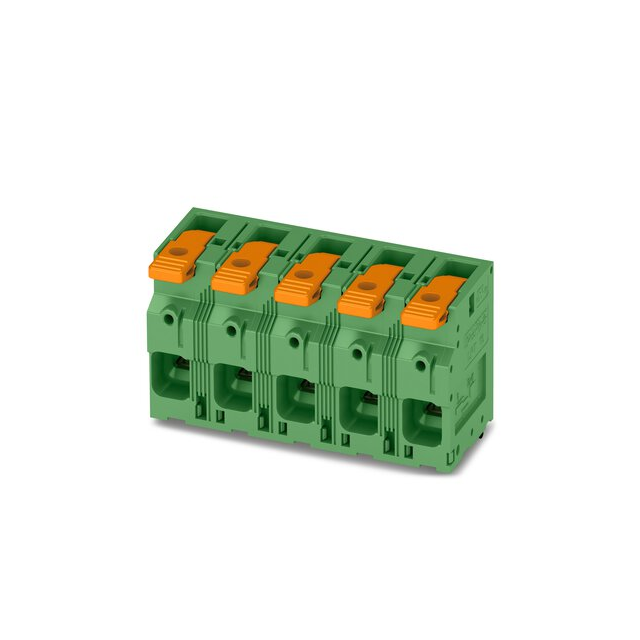

5 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1190300 |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Features | Lever Actuated |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Plating | Tin Plated |
| Positions Per Level | 5 |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
