VC05-0047

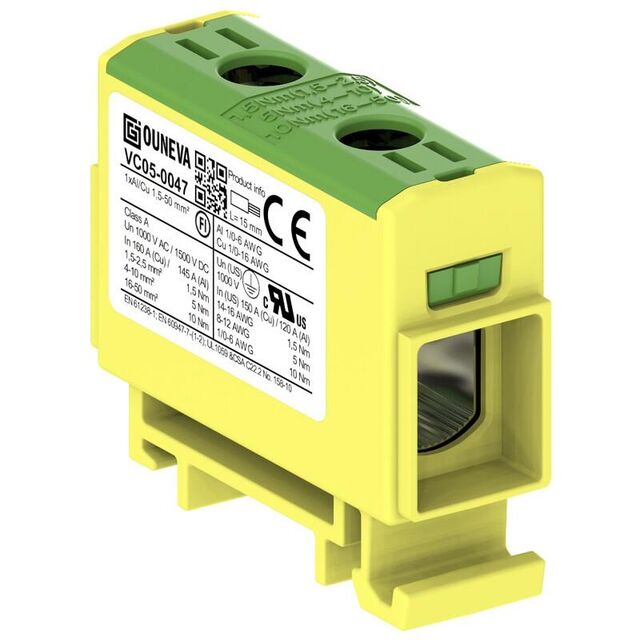

1 Pole Power Distribution Block 160 A 1500 V
Technical Specifications
Parameters and characteristics for this part
| Specification | VC05-0047 |
|---|---|
| Current Rating | 160 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Stud Size | 16 AWG CU/AL |
| Line Side Wire Size | 1/0 |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size | 1/0, 16 AWG CU/AL |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 1500 VAC |
