CSSH2512JT4L00
ActiveStackpole Electronics Inc
RES 0.004 OHM 5% 3W 2512
CSSH2512JT4L00
ActiveStackpole Electronics Inc
RES 0.004 OHM 5% 3W 2512
Description
General part information
CSSH2512JT4L00

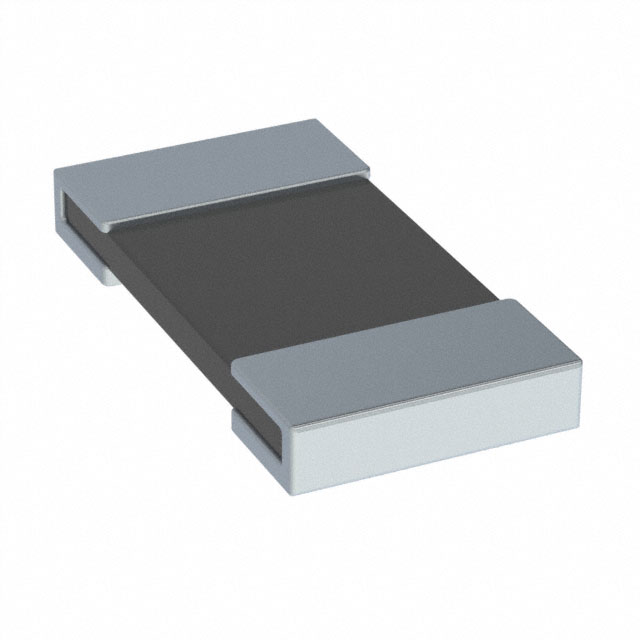

4 mOhms ±5% 3W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | CSSH2512JT4L00 |
|---|---|
| Composition | Metal Element |
| Features | Current Sense, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.041 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 225 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2512 (6432 Metric) |
| Package Name | 2512 |
| Power (Watts) | 3 W |
| Ratings | AEC-Q200 |
| Resistance | 4 mOhms |
| Size / Dimension Length | 0.246 in |
| Size / Dimension Width | 0.13 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 5 % |
