Description
General part information
09032426830

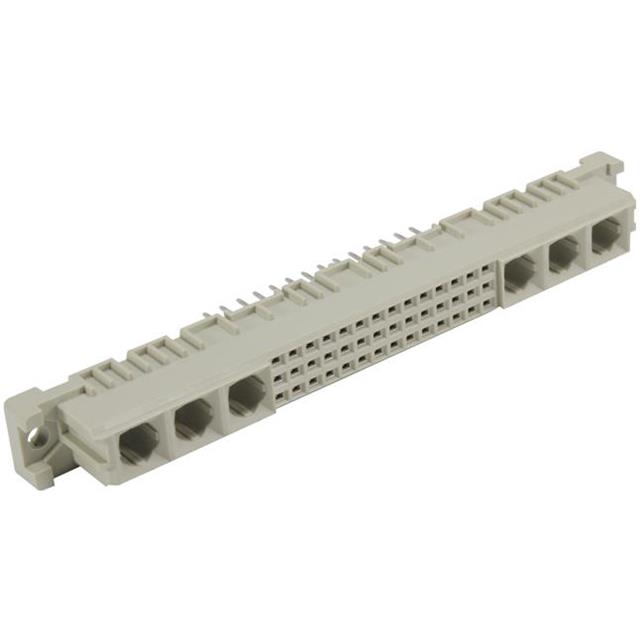

48 (42 + 6 Coax, Fiber Optic or Power) Position Din Connector Receptacle, Female Sockets Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 09032426830 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions (Special) | 6 positions |
| Number of Positions (Standard) | 42 |
| Number of Positions (Total) | 48 |
| Number of Positions Loaded | 42 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Position Types | Coax, Fiber Optic, Power |
| Style | M-flat |
| Termination | Press-Fit |
