Description
General part information

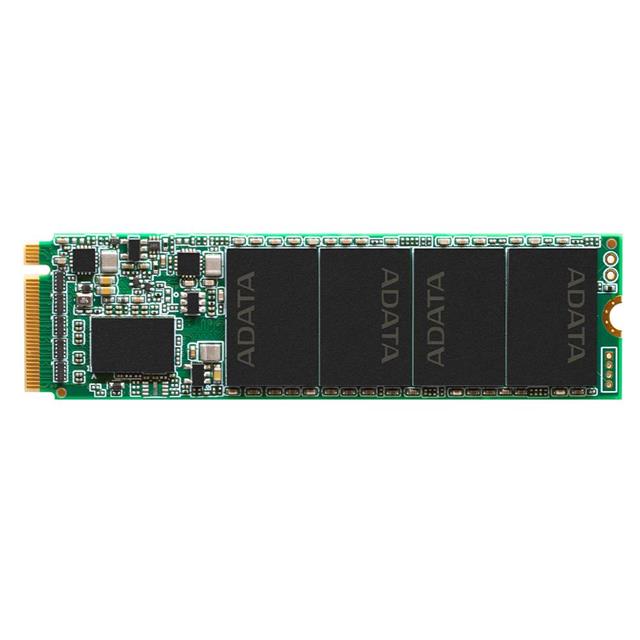

IM2P32A8-256GCTB5
Solid State Drive (SSD) FLASH - NAND (TLC) 256GB NVMe M.2 Module 3.3V
Technical Specifications
Parameters and characteristics for this part
| Specification | IM2P32A8-256GCTB5 |
|---|---|
| Form Factor | M.2 Module |
| Memory Size | 256 GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (TLC) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Height | 2.25 mm |
| Size / Dimension Length | 80 mm |
| Size / Dimension Width | 22 mm |
| Speed - Read | 3.3 GB/s |
| Speed - Write | 2.9 GB/s |
| Type | NVMe |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
