PE44083
ActivePasternack

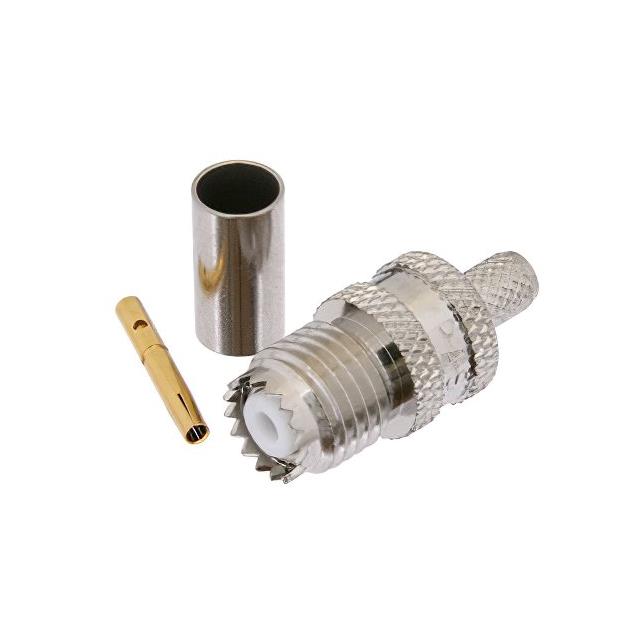

MINI UHF FEMALE CONNECTOR CRIMP/
PE44083
ActivePasternack
MINI UHF FEMALE CONNECTOR CRIMP/
Description
General part information
PE44083
UHF, Mini Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44083 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 400, RG-55, 141, 142, 223 |
| Center Contact Plating | Gold |
| Connector Style | UHF, Mini |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
