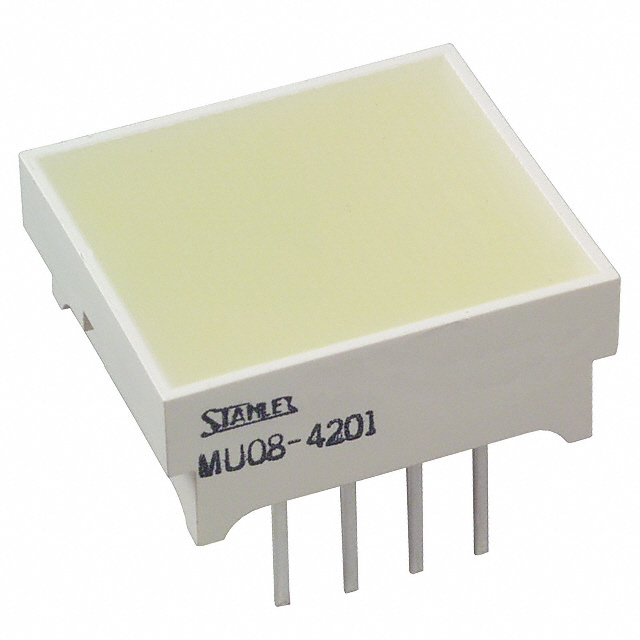

MU08-4201
ObsoleteStanley Electric Co
LED LGT BAR 16X14MM YL DIFF 8PIN
MU08-4201
ObsoleteStanley Electric Co
LED LGT BAR 16X14MM YL DIFF 8PIN
Description
General part information
MU08-4201
LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Yellow Tinted 2.1V 60mA Rectangle with Flat Top 16.00mm x 14.00mm Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | MU08-4201 |
|---|---|
| Color | Yellow |
| Configuration | DIP, Bar - Single |
| Current | 60 mA |
| Lens Length | 16 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Type | Tinted |
| Lens Width | 14 mm |
| Millicandela Rating | 42 mcd |
| Mounting Type | Through Hole |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 570 nm |
