Description
General part information
MF58104F3950

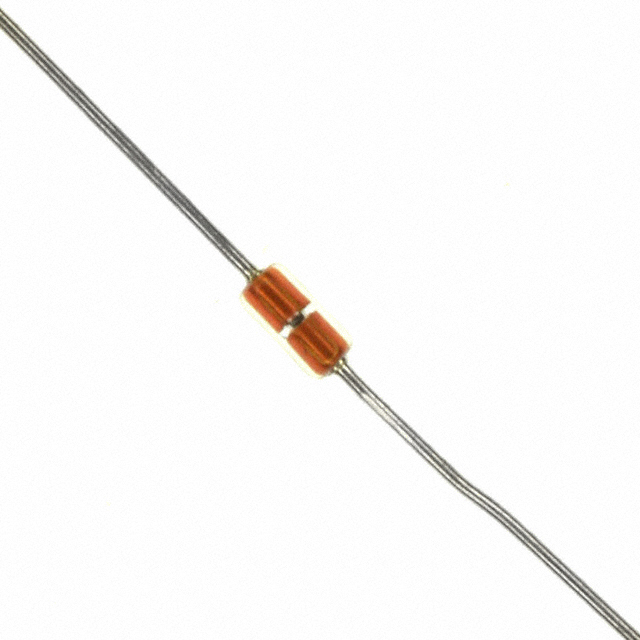

NTC Thermistor 100k Bead, Glass
Technical Specifications
Parameters and characteristics for this part
| Specification | MF58104F3950 |
|---|---|
| B25/50 | 3950 K |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Bead, Glass |
| Power - Max | 50 mW |
| Resistance (Ohms) | 100 kOhm |
| Resistance Tolerance (%) | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
