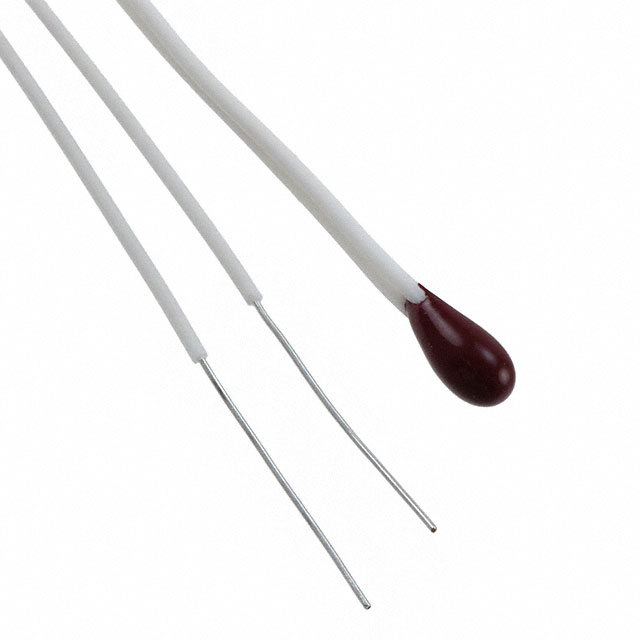

GA2.2K3A1IA
ActiveTE Connectivity AMP Connectors
DISCRETE 2.2K OHM,+/-0.1C FROM 0C TO 70C
GA2.2K3A1IA
ActiveTE Connectivity AMP Connectors
DISCRETE 2.2K OHM,+/-0.1C FROM 0C TO 70C
Description
General part information
BETACURVE Series
DISCRETE 2.2K OHM,+/-0.1C FROM 0C TO 70C
Technical Specifications
Parameters and characteristics for this part
| Specification | GA2.2K3A1IA |
|---|---|
| B Value (25/85) | 3976 K |
| B Value Tolerance | 0.5 % |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead |
| Resistance (Ohms) | 2.252 kOhm |
| Resistance Tolerance (°C) | 0.1 °C |
