UTSX0102W2P
ActiveAmphenol Aerospace Operations
SQUARE FLANGE RECEPTACLE, WITHOU
UTSX0102W2P
ActiveAmphenol Aerospace Operations
SQUARE FLANGE RECEPTACLE, WITHOU
Description
General part information
UTSX0102W2P

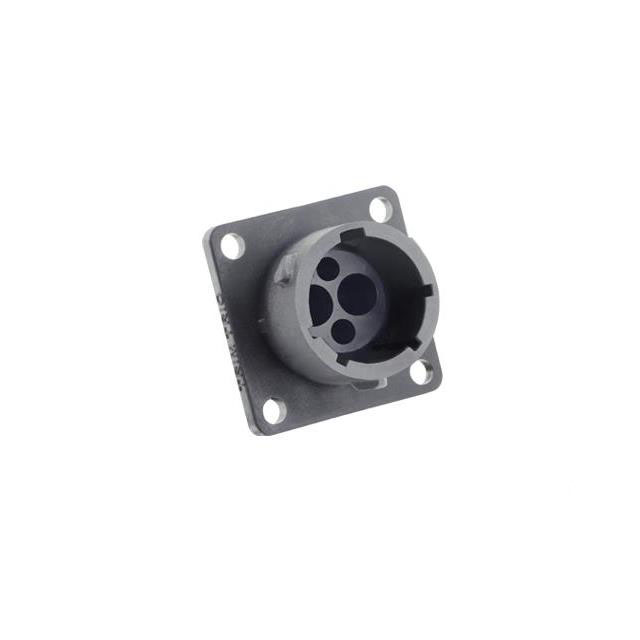

4 Position Circular Connector Receptacle Housing Panel Mount UV Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX0102W2P |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 12, 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Housing Color | Black |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert | 10-2W2 |
| Shielding | Unshielded |
| Type | For Male Pins |
