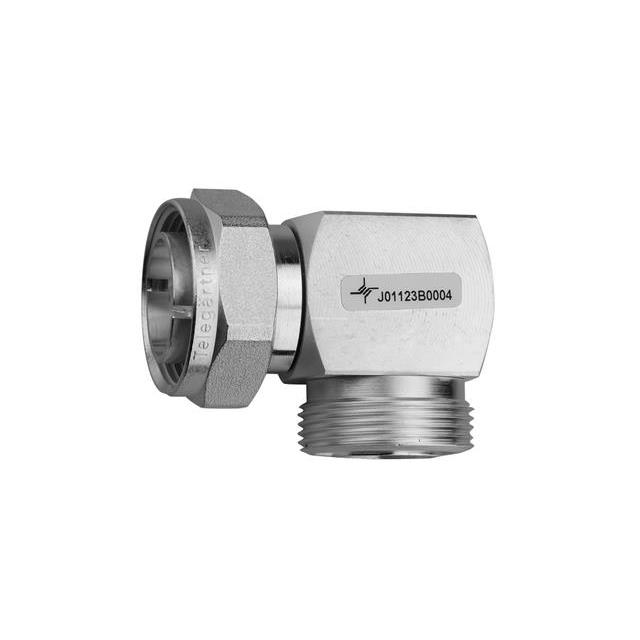

Specification	100024558

Adapter Series	7/16 to 7/16
Adapter Type	Plug to Jack
Body Finish	Tri-Metal
Body Material	Brass
Center Contact Material	Brass, Copper
Center Contact Plating	Silver
Center Gender	Male, Female
Conversion Type	Same Series
Convert From (Adapter End)	Male Pin, 7/16 Plug
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	7/16 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	6000 MHz
Impedance	50 Ohm
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Right Angle, Free Hanging (In-Line)
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Style	Right Angle
