XS4P30PA340
ActiveINDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M30, 15 MM, PNP, 12 TO 24V, PRE-WIRED
XS4P30PA340
ActiveINDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M30, 15 MM, PNP, 12 TO 24V, PRE-WIRED
Description
General part information
XS4P30PA340

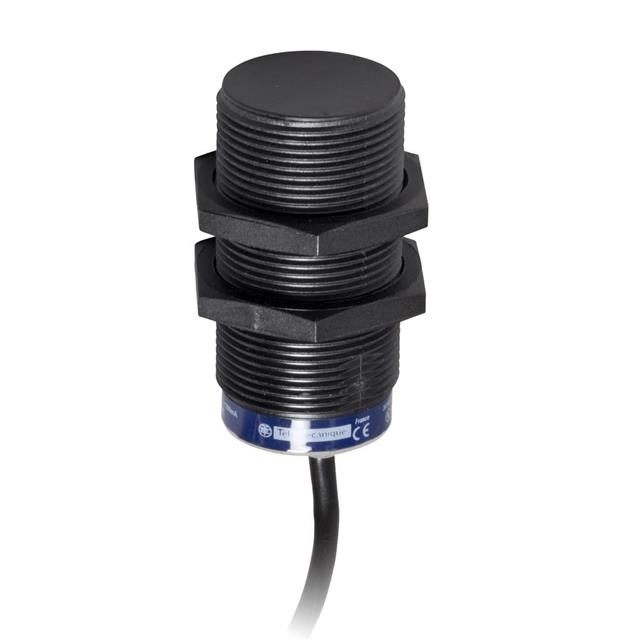

The XS4P30PA340 is a non-flush mountable general purpose Inductive Proximity Sensor offers discrete output signal, DC PNP-NO output, cable electrical connection and frontal detection face. It is made of plastic fixed body, PPS enclosure and PvR wire insulation.
Technical Specifications
Parameters and characteristics for this part
| Specification | XS4P30PA340 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68 |
| Material - Body | Polyphenylene Sulfide (PPS) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.591 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
