EVAL01-HMCAD1041
ObsoleteAnalog Devices Inc./Maxim Integrated
BOARD EVALUATION HMCAD1041-80
EVAL01-HMCAD1041
ObsoleteAnalog Devices Inc./Maxim Integrated
BOARD EVALUATION HMCAD1041-80
Description
General part information
EVAL01-HMCAD1041

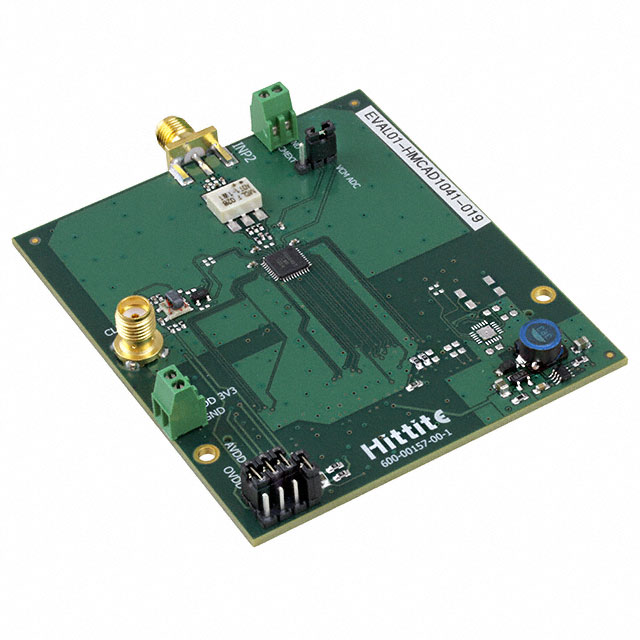

HMCAD1041 EasyBoard™ 10 Bit 65M, 80M Samples per Second Analog to Digital Converter (ADC) Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL01-HMCAD1041 |
|---|---|
| Contents | Board |
| Data Interface | Parallel |
| Input Voltage (Value) | 2 Vpp |
| Number of A/D Converters | 1 count |
| Number of Bits | 10 bits |
| Sampling Rate (Per Second) | 65 MHz, 80 MHz |
| Supplied Contents | Board(s) |
| Utilized IC / Part | HMCAD1041 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
