Description
General part information
IPX-D12-02E2

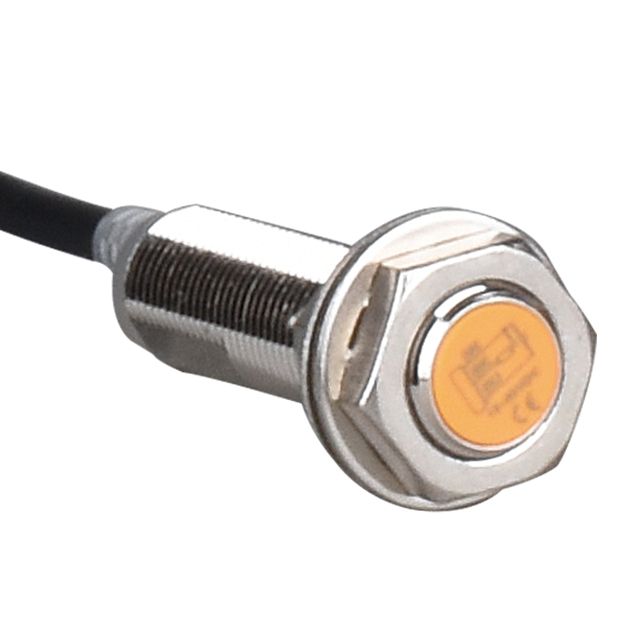

Inductive Proximity Sensor 0.079" (2mm) IP67 Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | IPX-D12-02E2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NPN-NC, 3-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Response Frequency | 600 Hz |
| Sensing Distance | 0.079 " |
| Sensor Type | Inductive |
| Shielding | Shielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
