Specification	1SNG601154R0000

Color	Light Gray
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Polyamide (PA6), Nylon 6
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Outside Cable Diameter (Max)	0.394 in
Outside Cable Diameter (Min)	0.197 in
Panel Hole Size	0.984 in
Thread Length	0.591 in
Thread Size (Diameter)	0.375 in
Thread Type	NPT

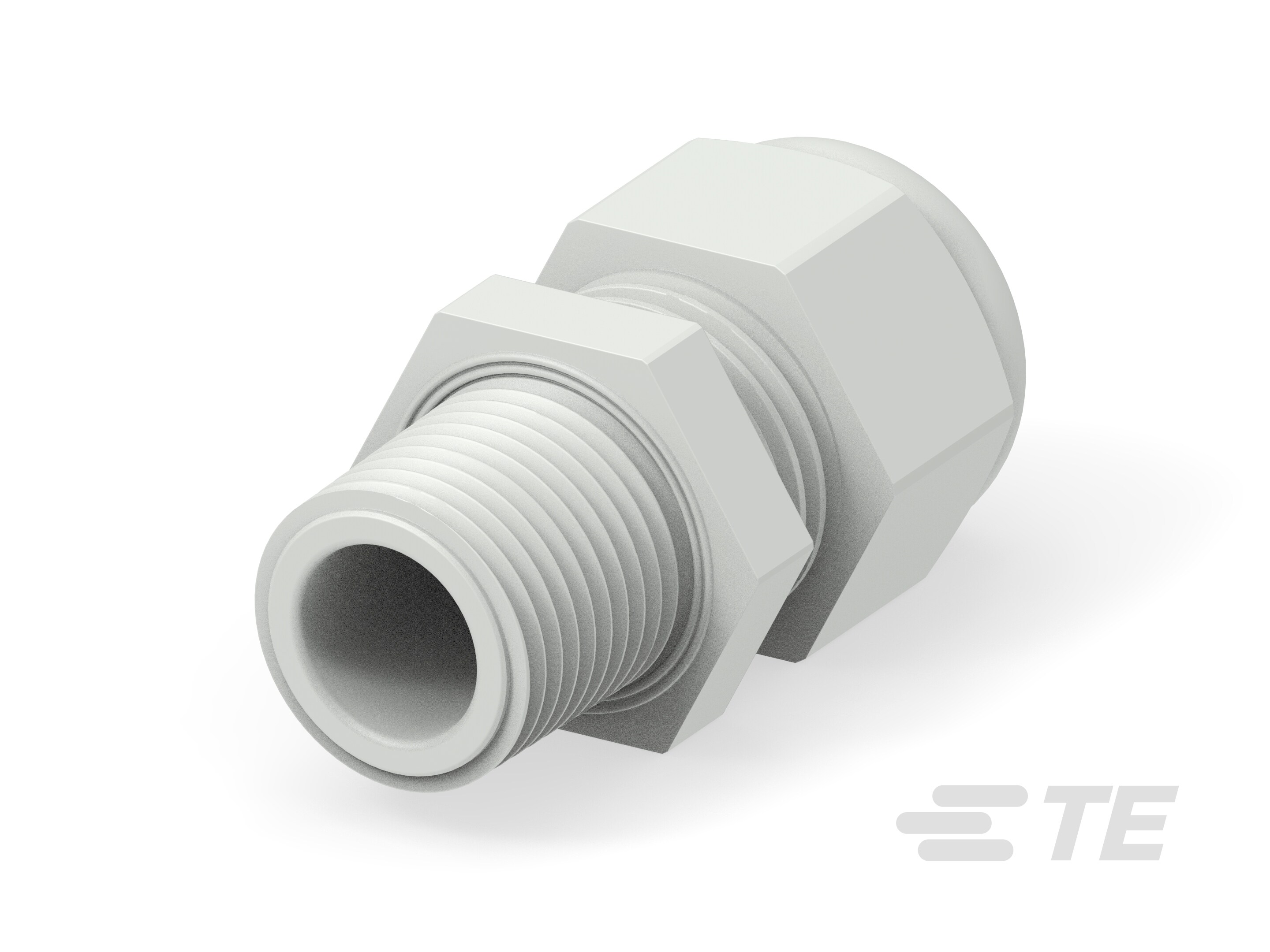

Type	Long Entry, Cable Gland
