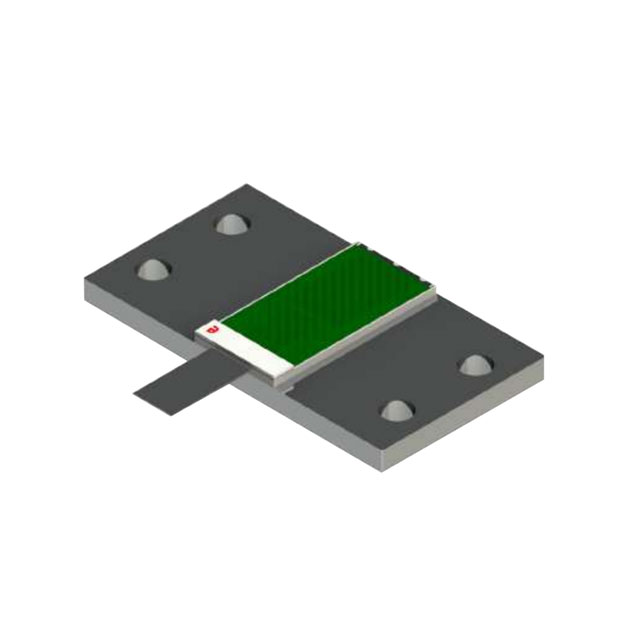

T50R0-1000-3X
ActiveVishay Dale
1000W (50 OHM) DC-1.4GHZ BEO FLA
T50R0-1000-3X
ActiveVishay Dale
1000W (50 OHM) DC-1.4GHZ BEO FLA
Description
General part information
T50R0-1000-3X
50 Ohms ±5% 1000W Thick Film Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | T50R0-1000-3X |
|---|---|
| Coating | Ceramic |
| Composition | Thick Film |
| Height - Seated (Max) | 0.25 in |
| Housing Type | Ceramic |
| Lead Style | Tab |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Terminator, Flat Box |
| Power (Watts) | 1 kW |
| Resistance | 50 Ohms |
| Size / Dimension Length | 1.9 in |
| Size / Dimension Width | 1.04 in |
| Tolerance | 5 % |
