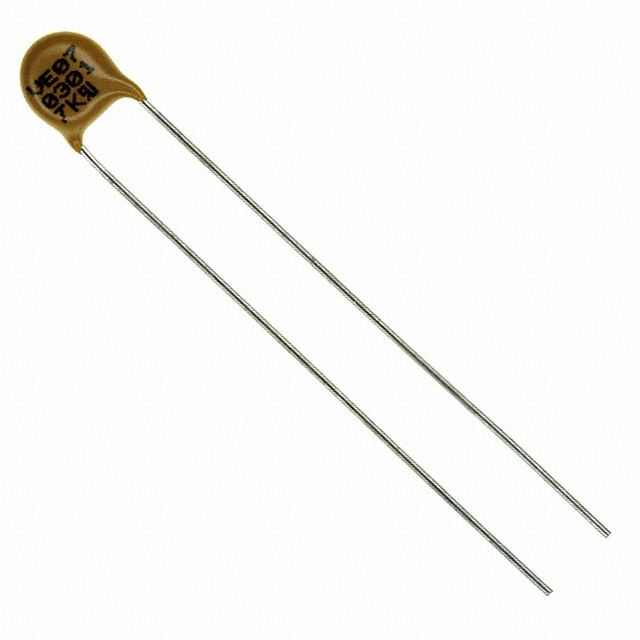

VE07M00301K
ObsoleteKYOCERA AVX
VARISTOR 470V 400A DISC 7MM
VE07M00301K
ObsoleteKYOCERA AVX
VARISTOR 470V 400A DISC 7MM
Description
General part information
VE07M00301K
470 V 400 A Varistor 1 Circuit Through Hole Disc 7mm
Technical Specifications
Parameters and characteristics for this part
| Specification | VE07M00301K |
|---|---|
| Capacitance | 40 pF |
| Current - Surge | 400 A |
| Energy | 3.3 J |
| Maximum AC Volts | 300 V |
| Maximum DC Voltage | 385 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Diameter | 7 mm |
| Package Name | Disc |
| Varistor Voltage (Max) | 517 V |
| Varistor Voltage (Min) | 423 V |
| Varistor Voltage (Typ) | 470 V |
