Description
General part information

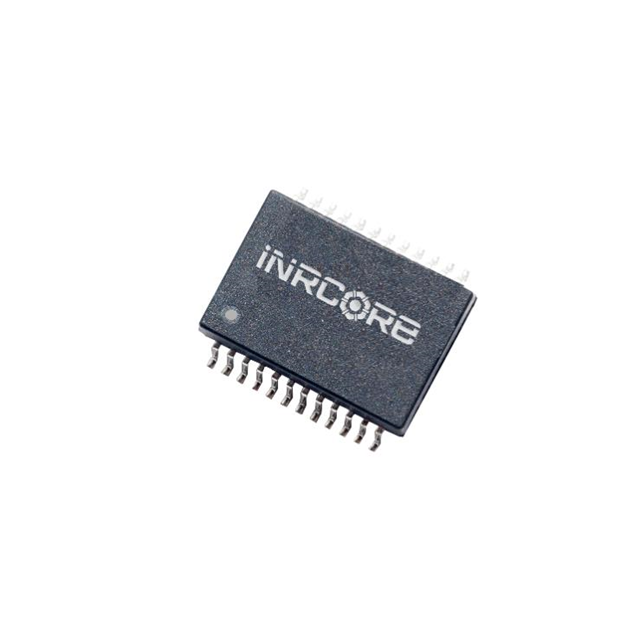

R6001NLT
120µH LAN 10G Base-T Pulse Transformer Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | R6001NLT |
|---|---|
| Height - Seated (Max) | 0.235 in |
| Inductance | 120 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.7 in |
| Size / Dimension Width | 0.49 in |
| Transformer Type | LAN 10G Base-T |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
