RZ-2405S/P-R
ObsoleteRecom Power
DC DC CONVERTER 5V 500MW
RZ-2405S/P-R
ObsoleteRecom Power
DC DC CONVERTER 5V 500MW
Description
General part information

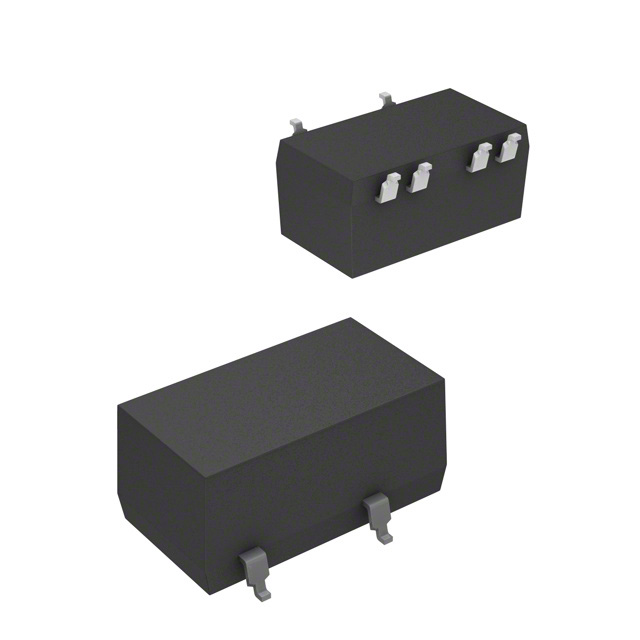

RZ-2405S/P-R
Isolated Module DC DC Converter 1 Output 5V 100mA 21.6V - 26.4V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RZ-2405S/P-R |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 100 mA |
| Efficiency | 50 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 6 Leads |
| Package Name | 10-SMD Module |
| Power (Watts) | 500 mW |
| Size / Dimension Height | 0.29 in |
| Size / Dimension Length | 0.6 in |
| Size / Dimension Width | 0.32 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 26.4 V |
| Voltage - Input (Min) | 21.6 V |
| Voltage - Isolation | 1000 Vrms |
| Voltage - Output 1 | 5 V |
