Description
General part information

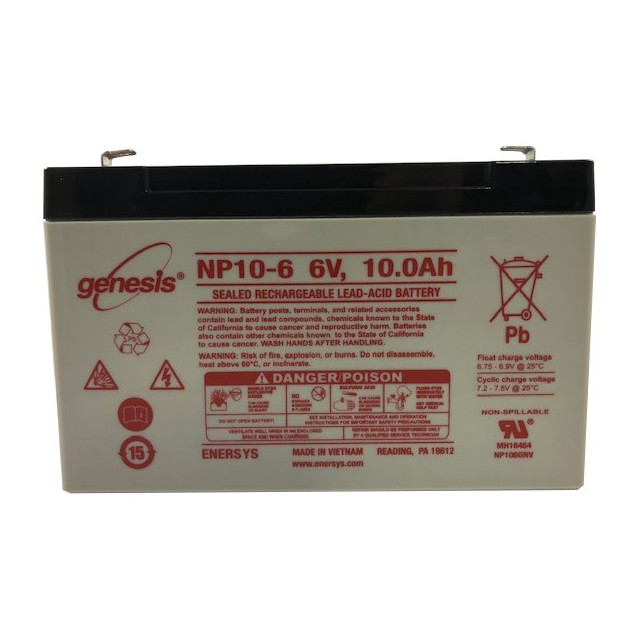

NP10-6
BATTERY LEAD ACID 6V 10AH 6V
Technical Specifications
Parameters and characteristics for this part
| Specification | NP10-6 |
|---|---|
| Battery Cell Voltage | 6 V |
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity (Charge) | 10 Ah |
| Quick Connect Size (0.187") | 0.187 in |
| Quick Connect Size (0.250") | 0.25 in |
| Size / Dimension Height | 3.98 in |
| Size / Dimension Length | 5.94 in |
| Size / Dimension Width | 1.97 in |
| Termination Size (Primary) | 0.187 in |
| Termination Size (Secondary) | 0.25 in |
| Termination Style | Spade |
| Voltage - Rated | 6 VDC |
