TR4-580SR-BL
ActiveMicro Connectors, Inc.

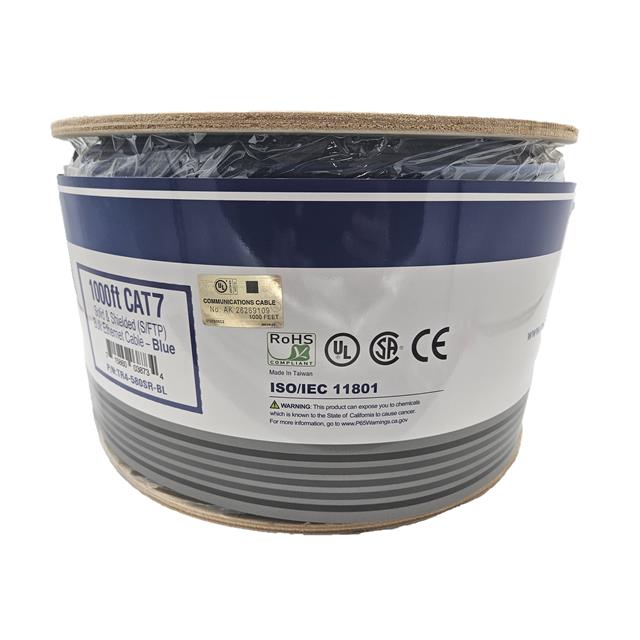

1000 FEET CAT7 BULK ETHERNET 23A
TR4-580SR-BL
ActiveMicro Connectors, Inc.
1000 FEET CAT7 BULK ETHERNET 23A
Description
General part information
TR4-580SR-BL
8 (4 Pair Twisted) Conductor Multi-Pair, Cat7 Cable Blue 23 AWG Foil, Braid 1000.0' (304.8m)
Technical Specifications
Parameters and characteristics for this part
| Specification | TR4-580SR-BL |
|---|---|
| Cable Type | Multi-Pair, Cat7 |
| Conductor Arrangement | Twisted |
| Conductor Insulation | High Density Polyethylene (HDPE), Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Shielded |
| Jacket (Insulation) Diameter | 0.283 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Blue |
| Length | 1000 ft |
| Number of Conductors | 8 |
| Number of Conductors - Pair | 4 |
| Ratings | Riser CMR, UL Style |
| Shield Type | Braid, Foil |
| Usage | Network, Video, LAN, Ethernet |
| Wire Gauge | 23 AWG |
