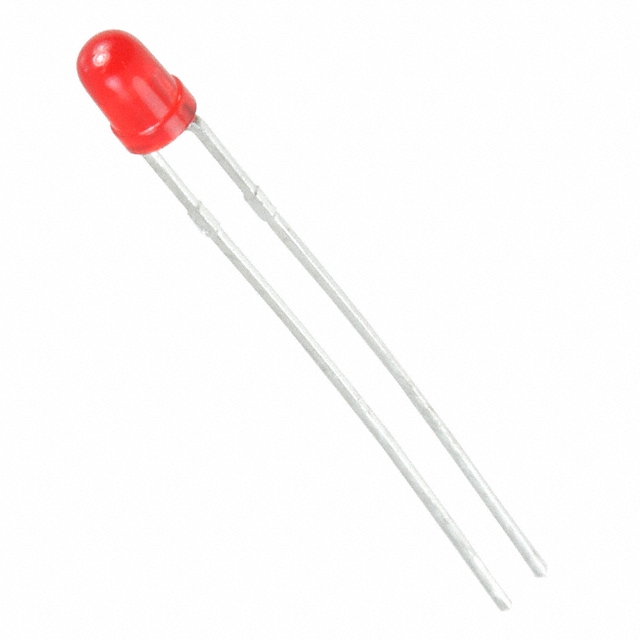

WP710A10SRD/F
ObsoleteKingbright
LED RED DIFFUSED T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP710A10SRD/F
ObsoleteKingbright
LED RED DIFFUSED T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP710A10SRD/F |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 5.9 mm |
| Lens Color | Red |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 160 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 2.9 mm |
| Supplier Device Package | T-1 |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.85 V |
| Wavelength - Dominant | 640 nm |
| Wavelength - Peak | 655 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WP710A10SRD/F
Red 640nm LED Indication - Discrete 1.85V Radial
Documents
Technical documentation and resources
