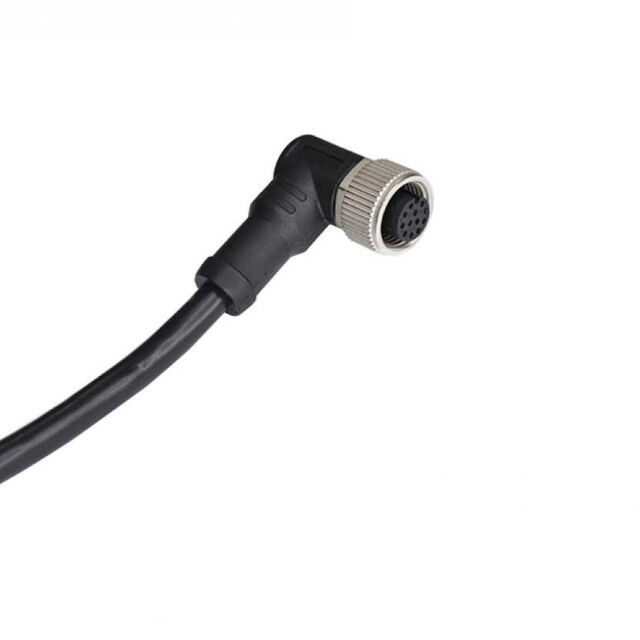

M SERIES SENSOR CONNECTOR, M12, B CODE, METAL, 4A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOL
MSBS-05BFFM-SR8D02
ActiveMcGill Microwave Systems
M SERIES SENSOR CONNECTOR, M12, B CODE, METAL, 4A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOL
Description
General part information
MSBS-05BFFM-SR8D02
Circular Cable Assembly Shielded 6.56' (2.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | MSBS-05BFFM-SR8D02 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Right Angle, Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Length | 6.56 ft |
| Shielding | Shielded |
| Usage | Industrial Environments |
