130519
ActiveTE Connectivity AMP Connectors
M4 STUD SPADE TERM CONN CRIMP 16
130519
ActiveTE Connectivity AMP Connectors
M4 STUD SPADE TERM CONN CRIMP 16
Description
General part information
130519

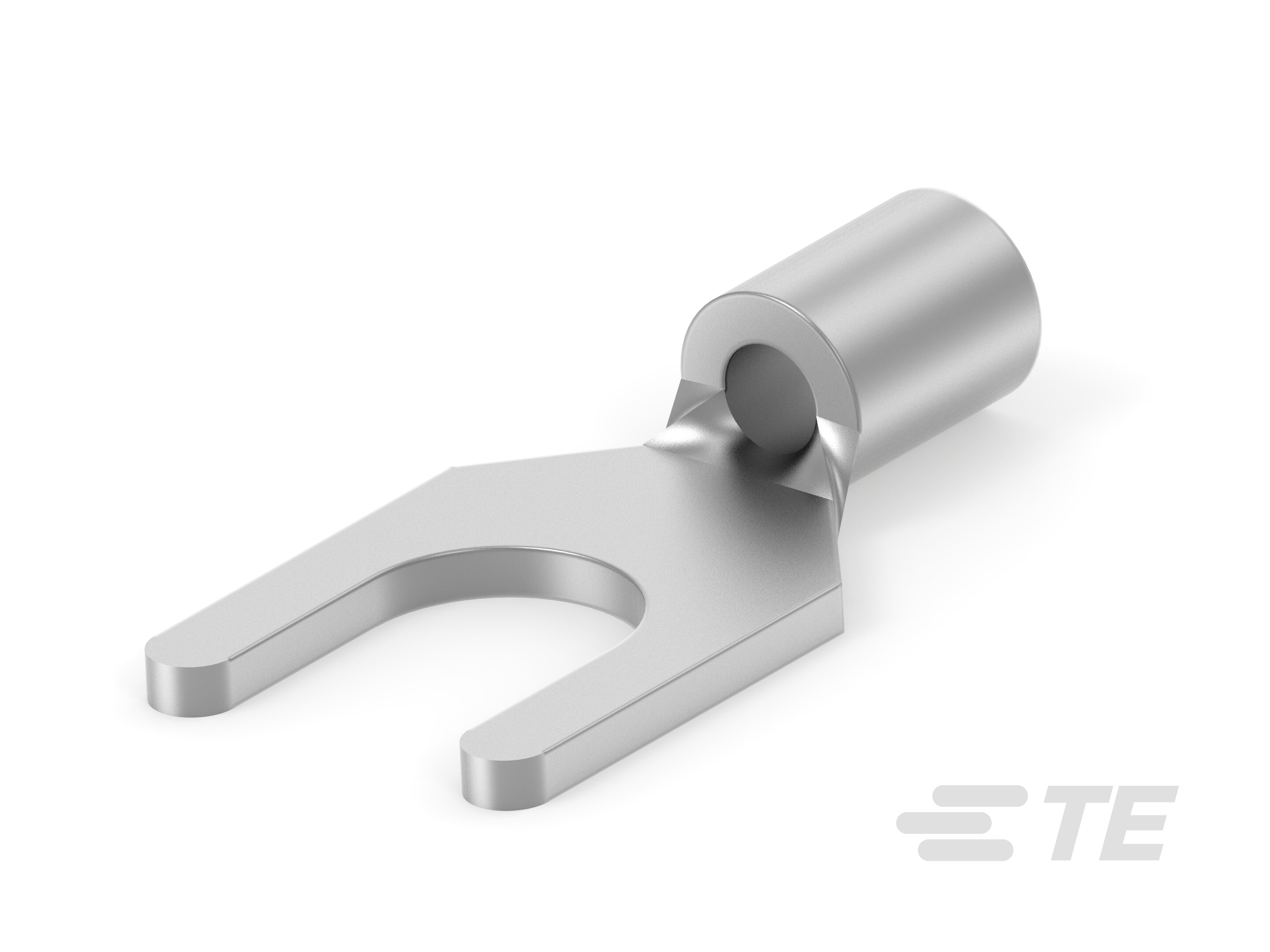

Spade Tongue Terminal, 22 – 16 AWG, M4 Stud, 4.3 mm [.169 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 130519 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.591 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M4 Stud, M4 |
| Terminal Type | Standard |
| Termination | Crimp |
| Width - Outer Edges | 0.28 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
