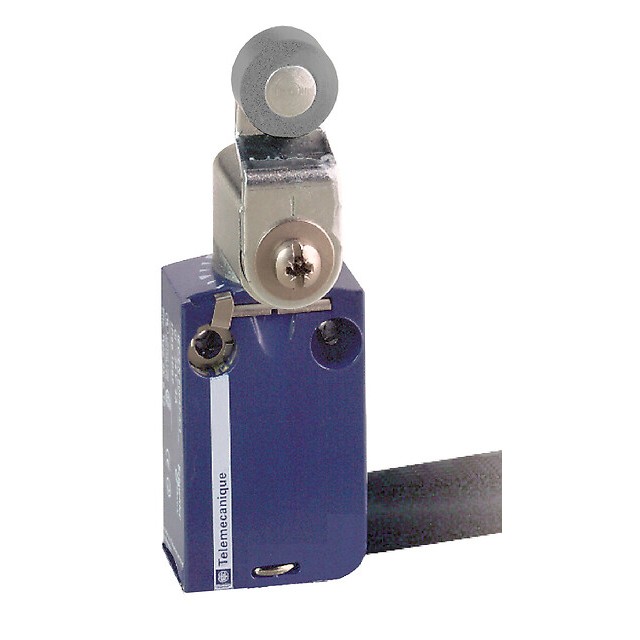

XCMD2517L1
ActiveSCHNEIDER ELECTRIC
SWITCH LIMIT DPST 1.5A 240V
XCMD2517L1
ActiveSCHNEIDER ELECTRIC
SWITCH LIMIT DPST 1.5A 240V
Description
General part information
XCMD2517L1
Switch DPST-NO/NC Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XCMD2517L1 |
|---|---|
| Actuator Type | Ball Bearing Plunger |
| Circuit | DPST-NO/NC |
| Current Rating | 100 mA, 1.5 A |
| Electrical Life (Cycles) | 5000000 Cycles |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Cable Leads |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
