LCCA30254-FT1.5
ActivePasternack
COAX CBL TNC TO TNC 18"
LCCA30254-FT1.5
ActivePasternack
COAX CBL TNC TO TNC 18"
Description
General part information
LCCA30254-FT1.5

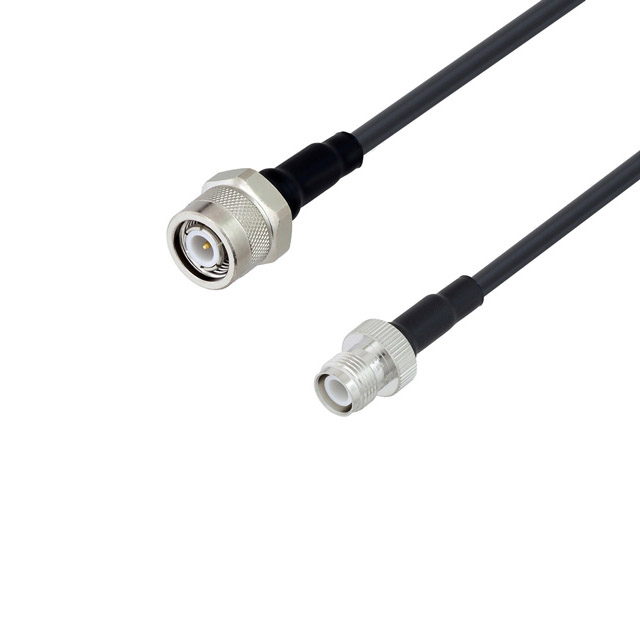

Cable Assembly Coaxial TNC to TNC LMR 200 18.00" (457.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30254-FT1.5 |
|---|---|
| 1st Connector | TNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 200 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 18 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | TNC |
