5308 959/SET
ActiveAltech Corporation

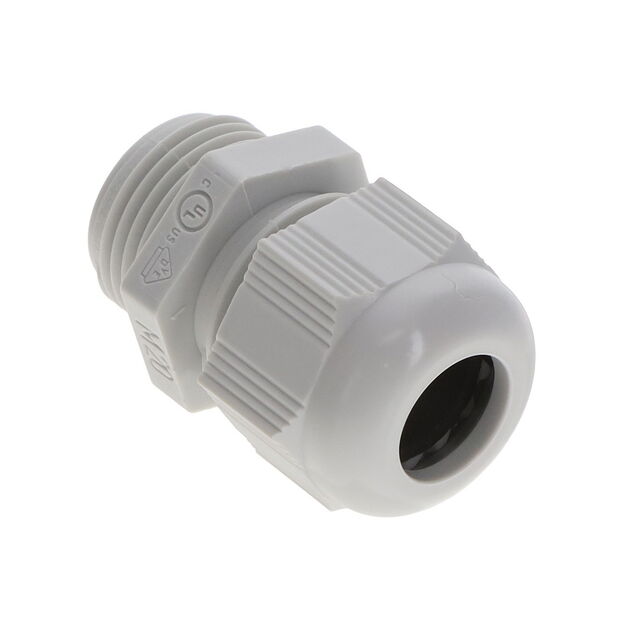

CABLE GLAND 5-12MM M20 POLYAMIDE
5308 959/SET
ActiveAltech Corporation
CABLE GLAND 5-12MM M20 POLYAMIDE
Description
General part information
5308 Series
Cable Gland Polyamide (PA), Nylon M20x1.5 Gray
Technical Specifications
Parameters and characteristics for this part
| Specification | 5308 959/SET |
|---|---|
| Color | Gray |
| Includes | Locknut |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Material | Nylon, Polyamide (PA) |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Outside Cable Diameter (Max) | 0.472 in |
| Outside Cable Diameter (Min) | 0.197 in |
| Panel Hole Size | 0.787 in |
| Thread Diameter | 20 mm |
| Thread Length | 0.394 in |
| Thread Pitch | 1.5 mm |
| Type | Cable Gland |
