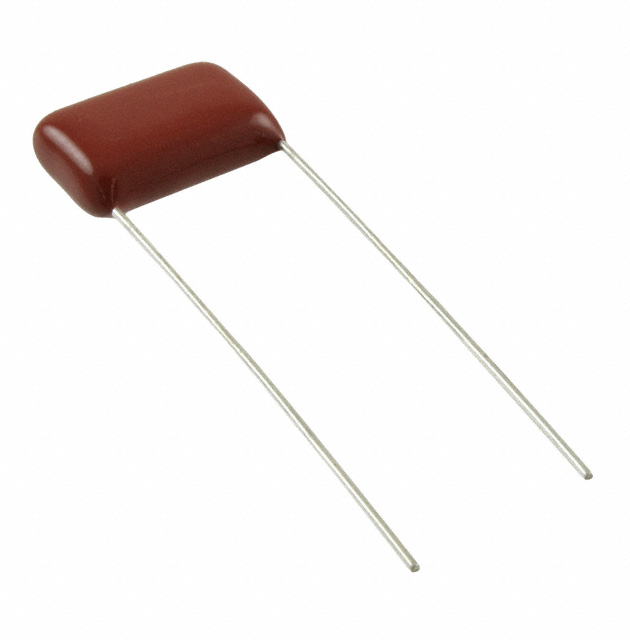

Specification	QXP2G333KRPT

Applications	Switching, High Frequency
Capacitance	0.033 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	0.476 in
Lead Spacing	0.492 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Size / Dimension Length	0.63 in
Size / Dimension Width	0.256 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	160 V
Voltage Rating - DC	400 V

QXP Series

Part	Lead Spacing	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating - DC	Size / Dimension Width	Size / Dimension Length	Tolerance	Mounting Type	Voltage Rating - AC	Termination	Package / Case	Capacitance	Height - Seated (Max)	Applications
Nichicon QXP2E684KRPT	0.689 in	Metallized Polypropylene (PP)	-40 °C	105 °C	250 VDC	0.406 in	0.827 in	10 %	Through Hole	125 V	PC Pins	Radial	0.68 µF	0.709 in	High Frequency Switching
Nichicon QXP2G155KRPT	1.083 in	Metallized Polypropylene (PP)	-40 °C	105 °C	400 V	0.587 in	1.24 in	10 %	Through Hole	160 V	PC Pins	Radial	1.5 µF	1.039 in	High Frequency Switching
Nichicon QXP2G105KRPT	1.083 in	Metallized Polypropylene (PP)	-40 °C	105 °C	400 V	0.512 in	1.24 in	10 %	Through Hole	160 V	PC Pins	Radial	1 µF	0.898 in	High Frequency Switching
Nichicon QXP2G224KRPT	0.689 in	Metallized Polypropylene (PP)	-40 °C	105 °C	400 V	0.362 in	0.827 in	10 %	Through Hole	160 V	PC Pins	Radial	0.22 µF	0.669 in	High Frequency Switching
Nichicon QXP2K153KRPT	0.492 in	Metallized Polypropylene (PP)	-40 °C	105 °C	800 V	0.276 in	0.63 in	10 %	Through Hole	250 V	PC Pins	Radial	0.015 µF	0.496 in	High Frequency Switching
Nichicon QXP2E225KRPT	1.083 in	Metallized Polypropylene (PP)	-40 °C	105 °C	250 VDC	0.496 in	1.24 in	10 %	Through Hole	125 V	PC Pins	Radial	2.2 µF	0.882 in	High Frequency Switching
Nichicon QXP2E225JRP7FX	1.083 in	Metallized Polypropylene (PP)	-40 °C	105 °C	250 VDC	0.496 in	1.24 in	5 %	Through Hole	125 V	PC Pins	Radial	2.2 µF	1.059 in	High Frequency Switching
Nichicon QXP2K224KRP7FT	0.886 in	Metallized Polypropylene (PP)	-40 °C	105 °C	800 V	0.453 in	1.043 in	10 %	Through Hole	250 V	PC Pins	Radial	0.22 µF	1.016 in	High Frequency Switching
Nichicon QXP2G223KRP7FL	0.492 in	Metallized Polypropylene (PP)	-40 °C	105 °C	400 V	0.228 in	0.63 in	10 %	Through Hole	160 V	PC Pins	Radial	0.022 µF	0.606 in	High Frequency Switching
Nichicon QXP2G474KRP7FP	0.886 in	Metallized Polypropylene (PP)	-40 °C	105 °C	400 V	0.409 in	1.043 in	10 %	Through Hole	160 V	PC Pins	Radial	0.47 µF	0.972 in	High Frequency Switching
