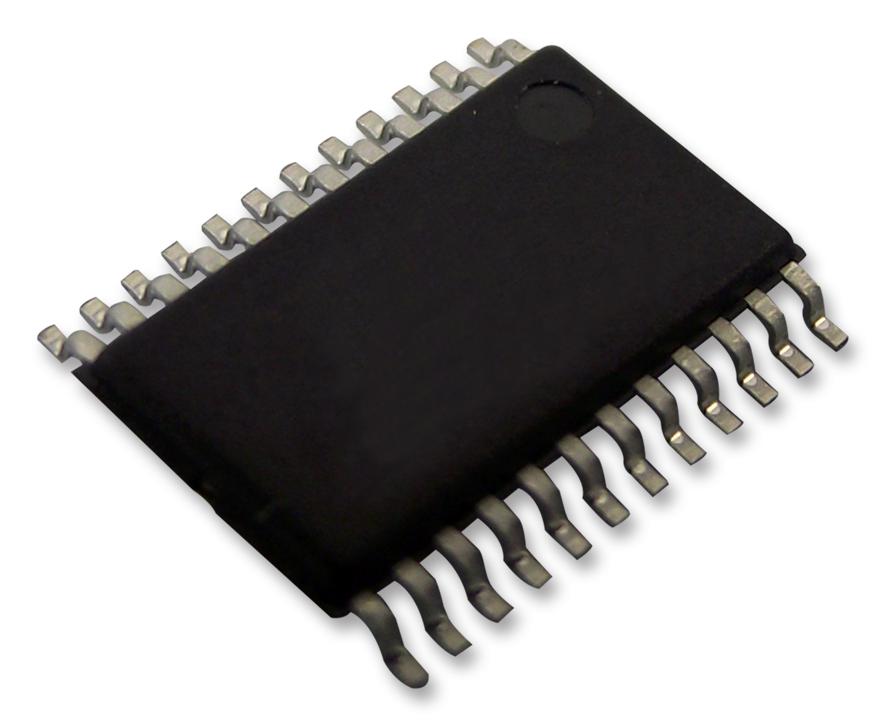

Specification	LPC804M111JDH24FP

A/D Channels	12 count
A/D Resolution (bits)	12 bit
Connectivity	USART, UART, SPI, I2C
Core Processor	ARM® Cortex®-M0+
Core Size (Bit Width)	32 Bit
D/A Channels	1 count
D/A Resolution (bits)	10 bit
Mounting Type	Surface Mount
Number of I/O	20
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package Length	0.173 in
Package Name	24-TSSOP
Package Width	4.4 mm
Peripherals	WDT, PWM, Brown-out Detect, POR, Reset
Program Memory Depth	32 K
Program Memory Size	32 KB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	4 K
RAM Size Width	8 bit
Speed	15 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	1.71 V
