MAL210617154E3
ActiveVishay Dale
CAP ALUM 150000UF 40V SCREW CHAS
MAL210617154E3
ActiveVishay Dale
CAP ALUM 150000UF 40V SCREW CHAS
Description
General part information
MAL210617154E3
150000 µF 40 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 8mOhm @ 100Hz 20000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL210617154E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 150000 µF |
| ESR (Equivalent Series Resistance) | 8 mOhm |
| Height - Seated (Max) | 8.925 in |
| Impedance | 8 mOhms |
| Lead Spacing | 1.252 in |
| Lifetime | 20000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |

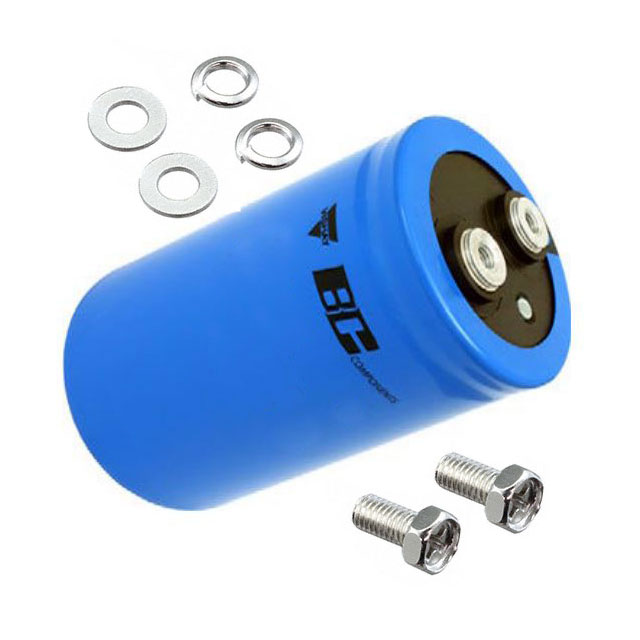

| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 38 A |
| Size / Dimension Diameter | 2.992 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 40 V |
